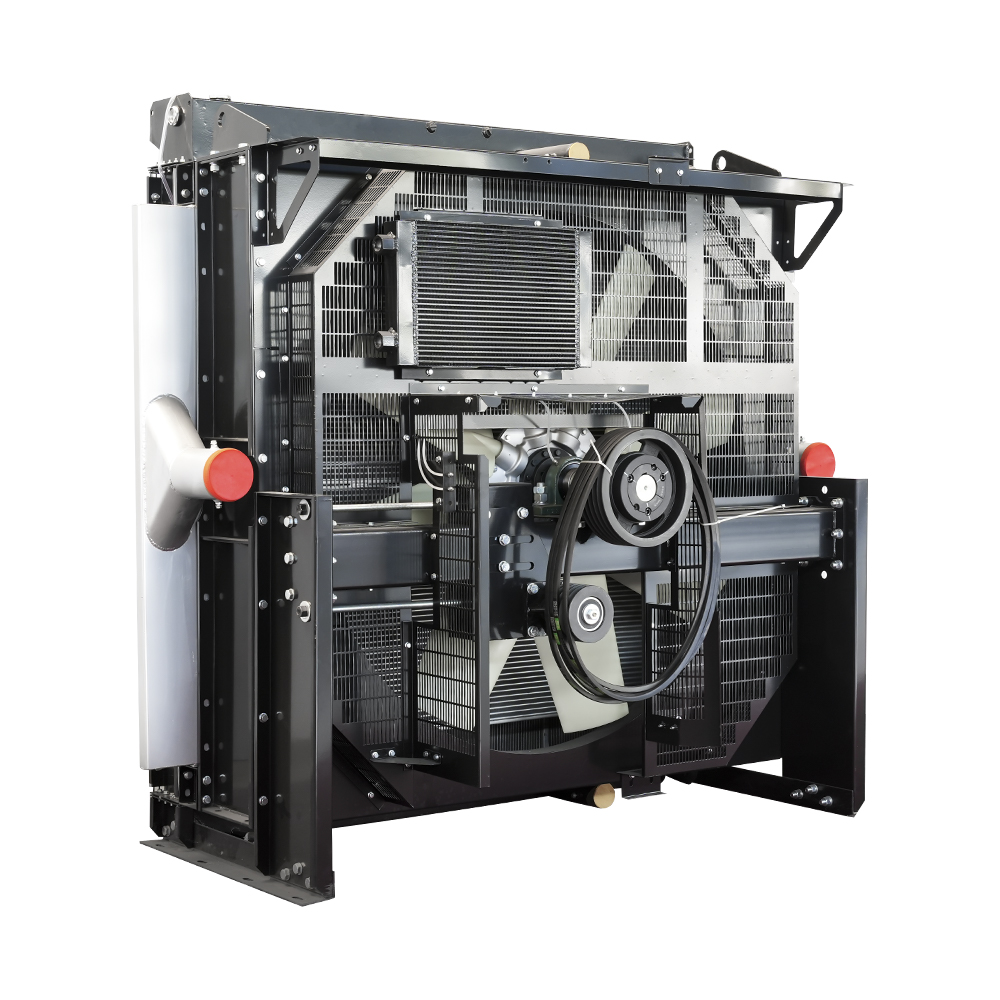

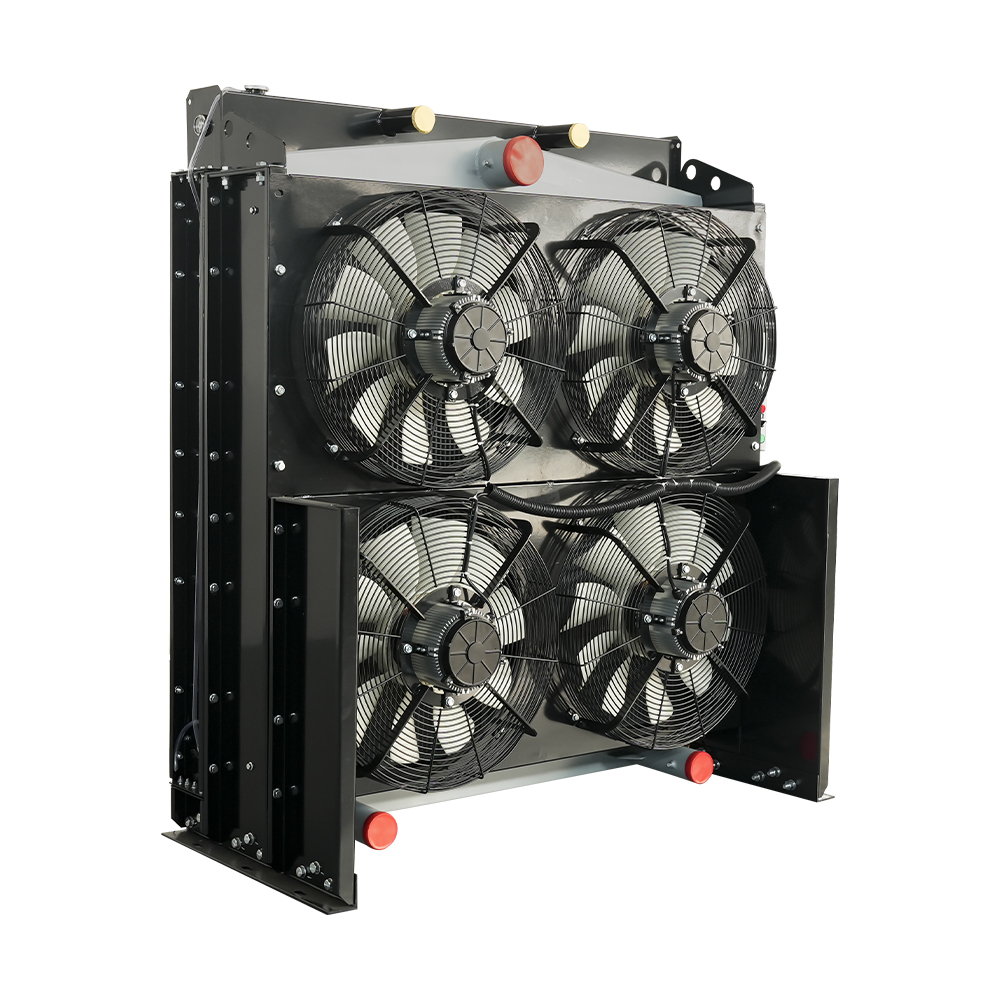

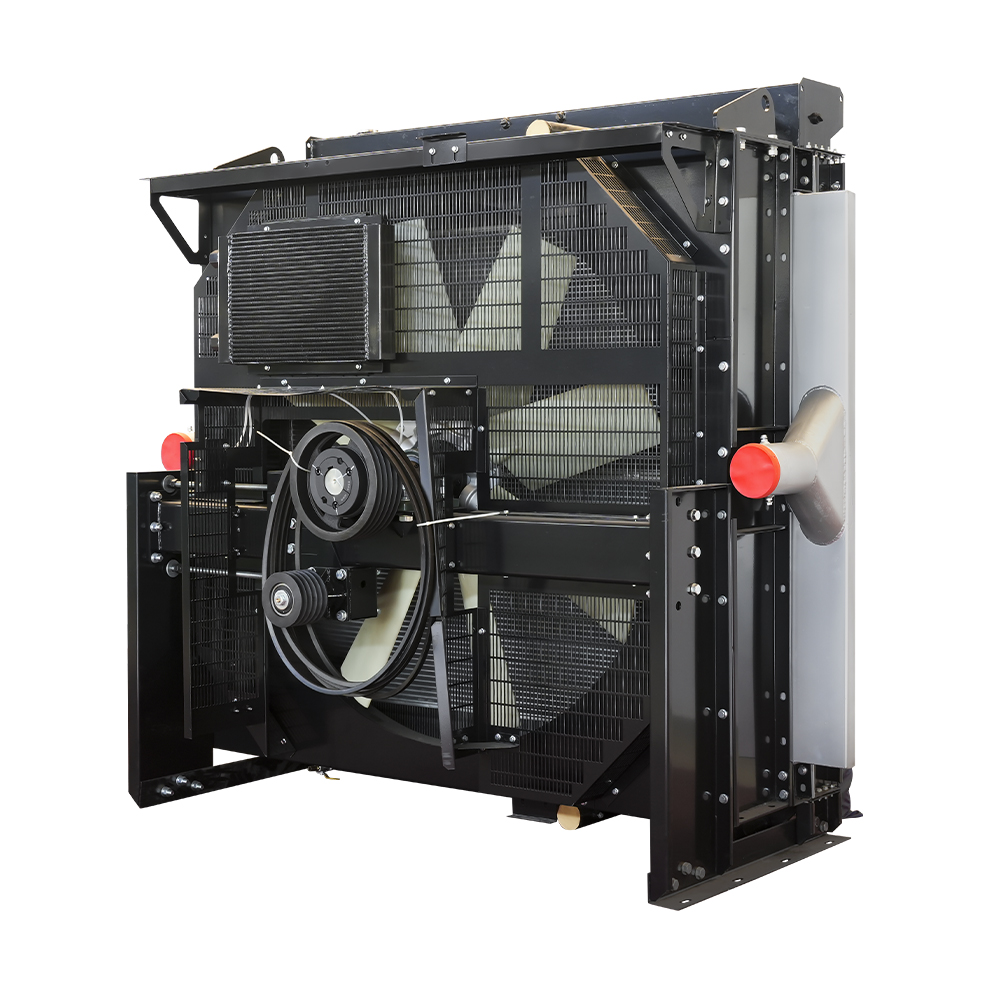

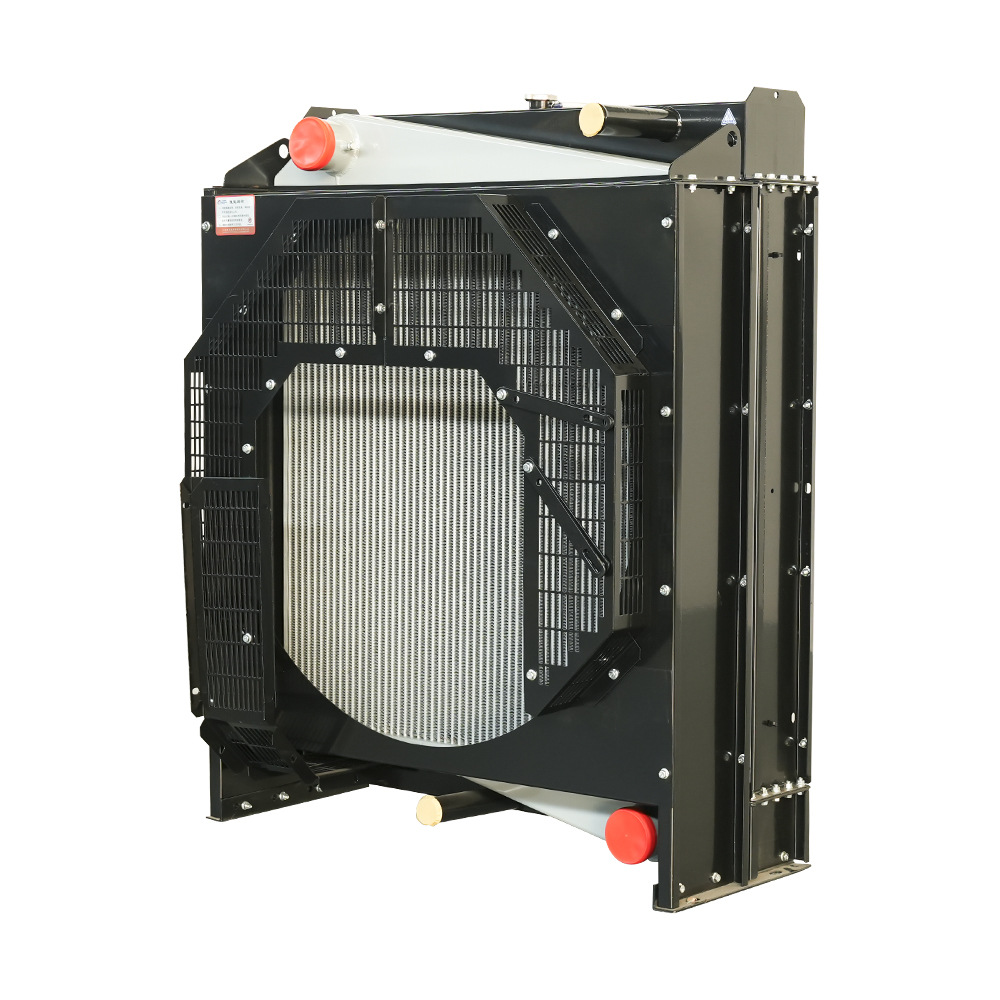

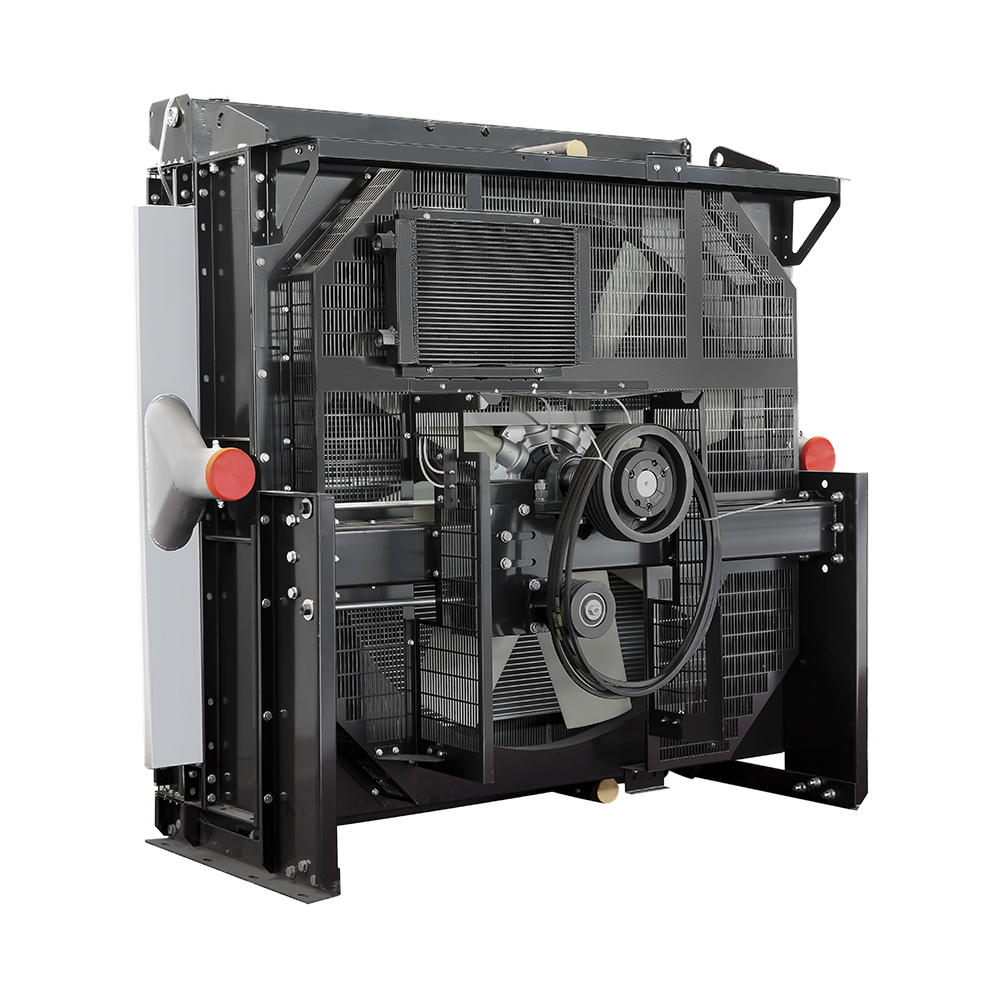

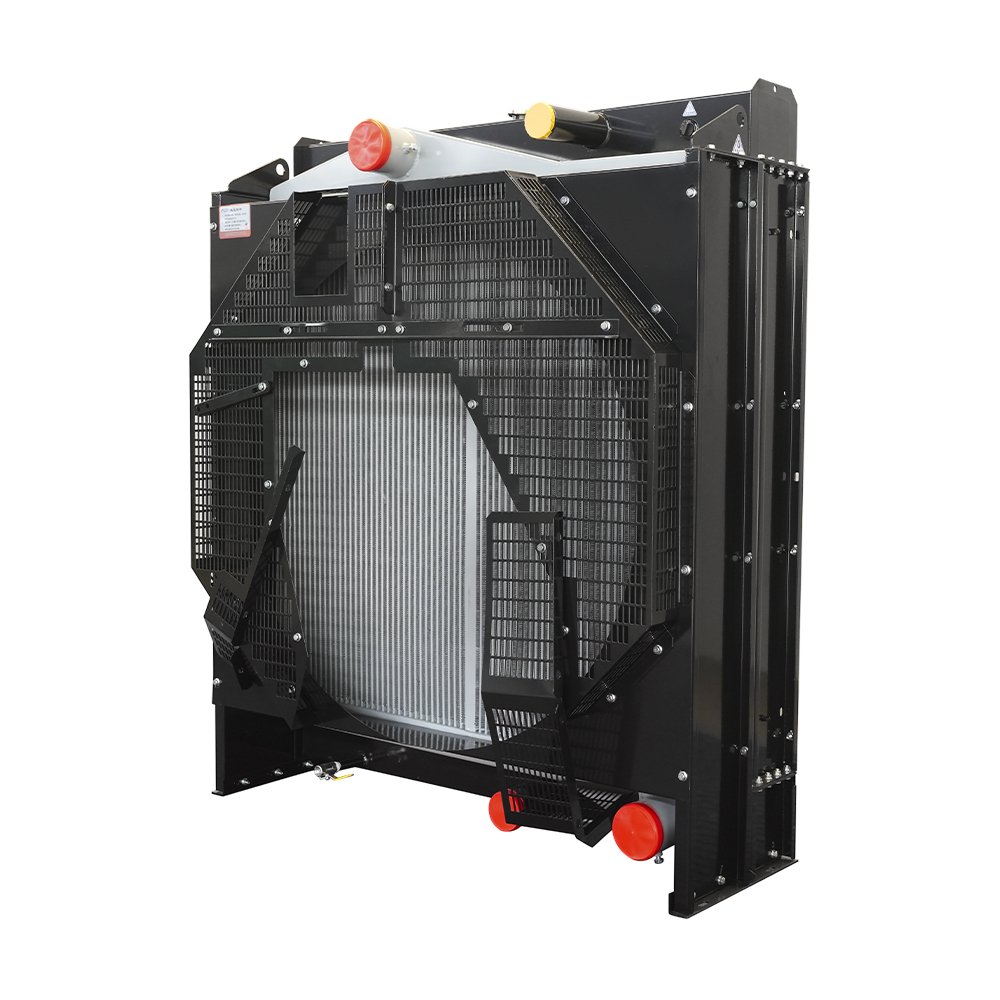

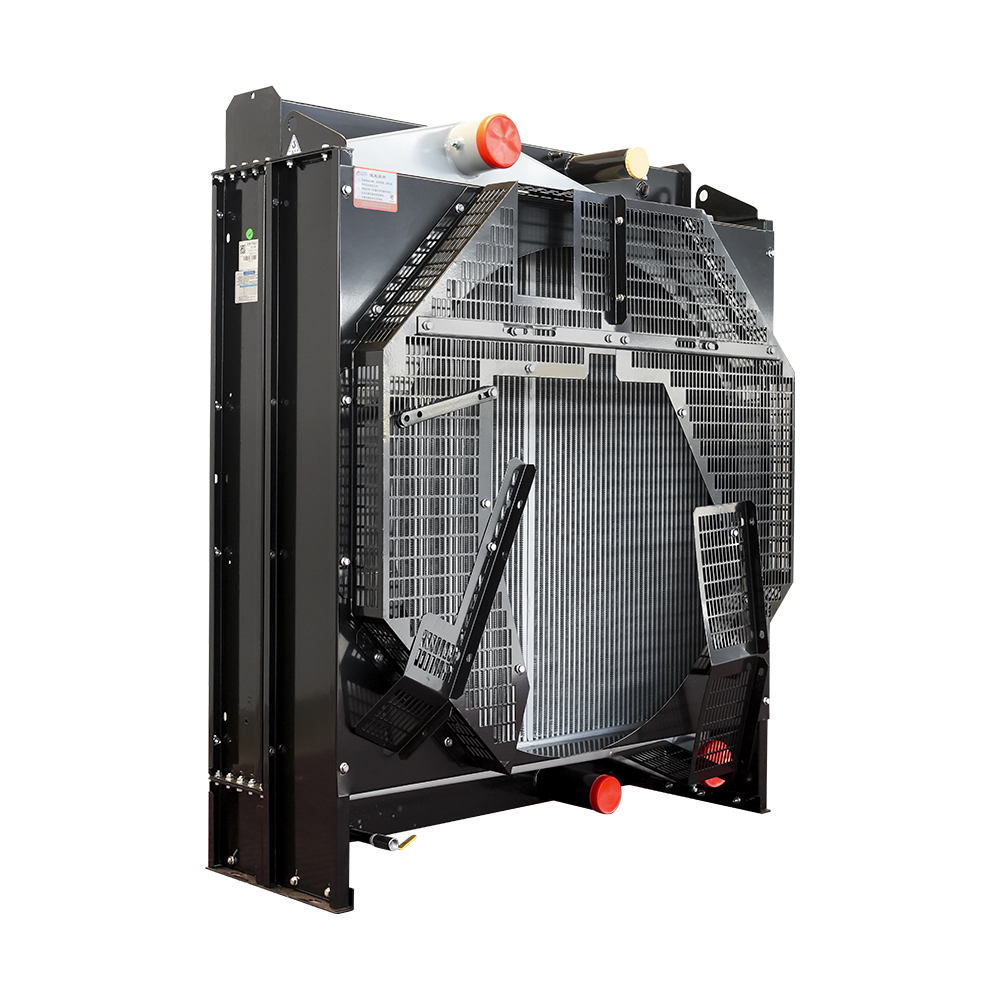

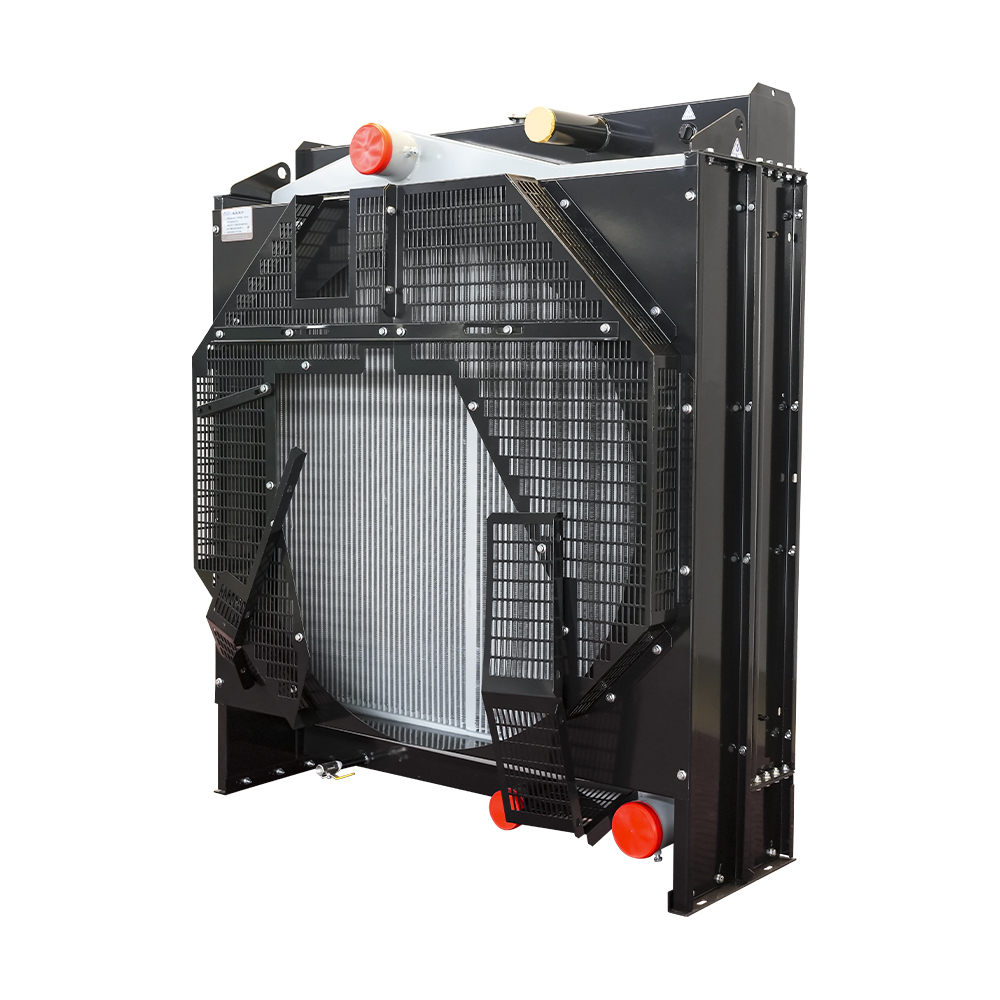

Methanol Generator Radiator

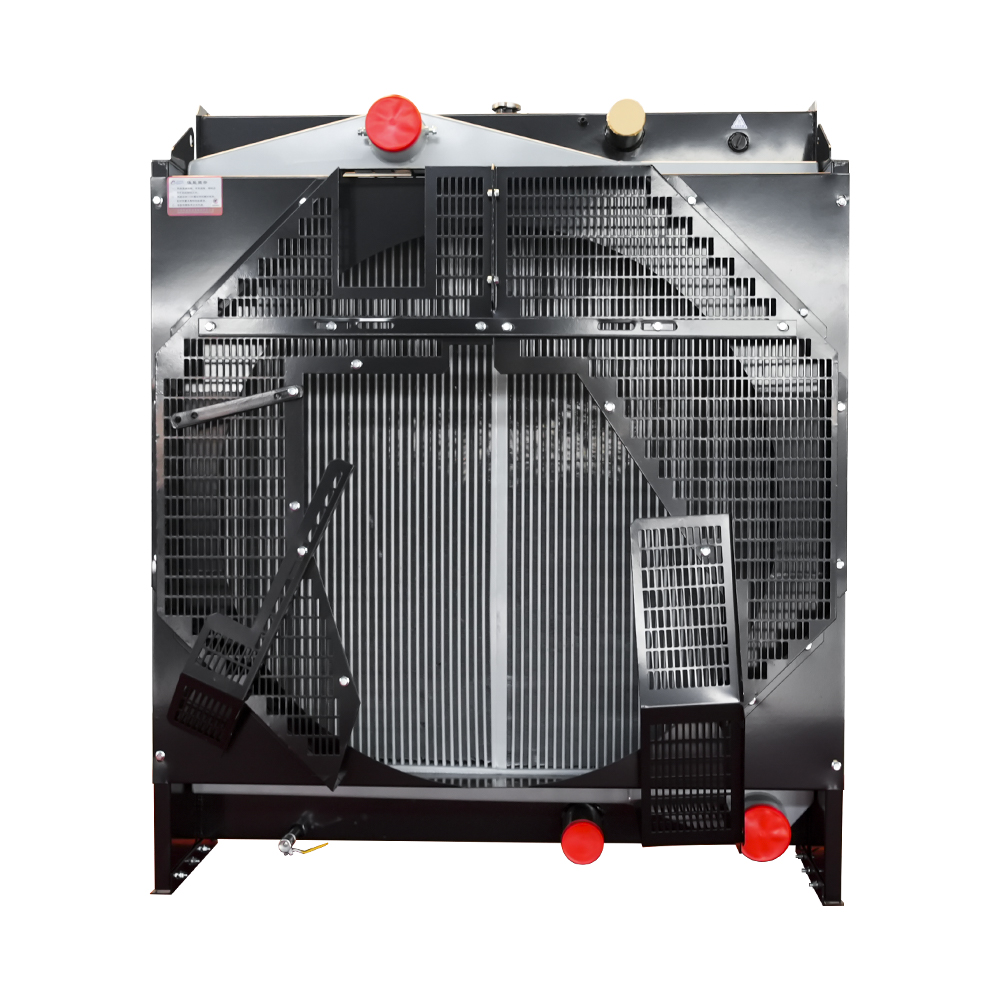

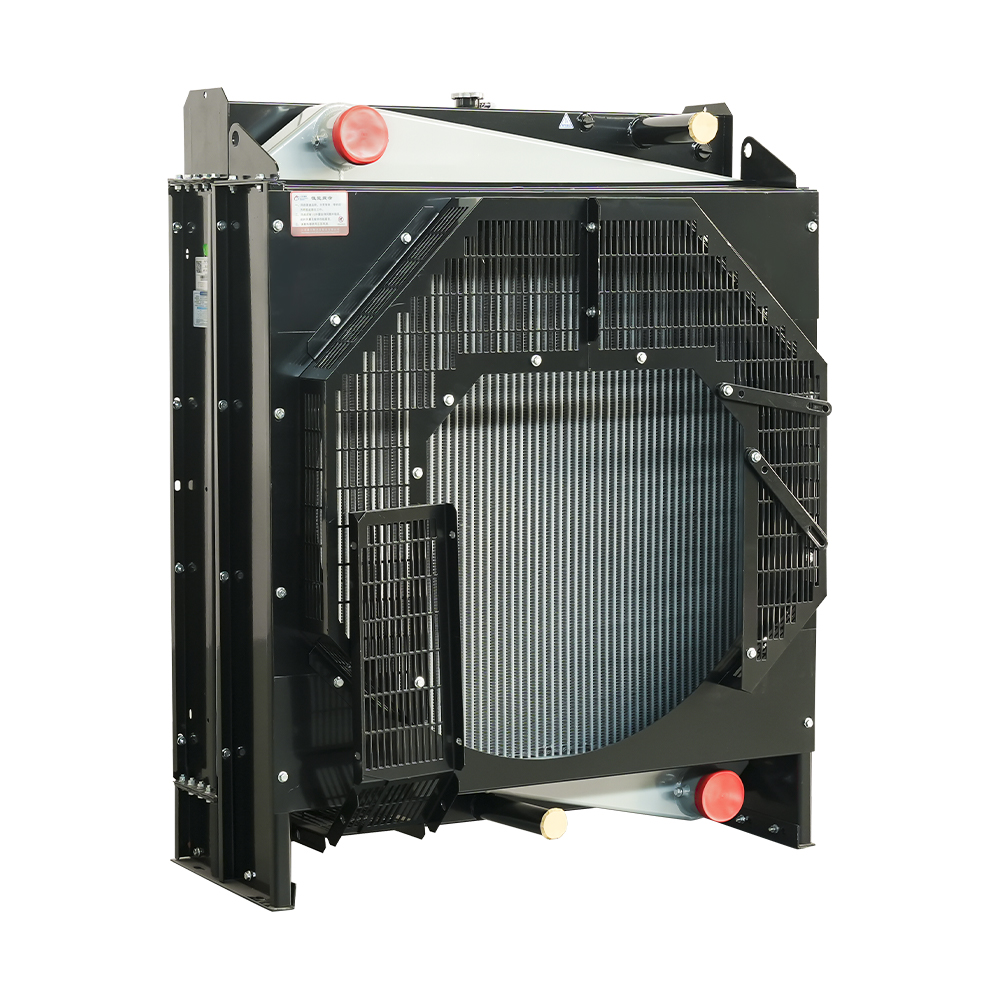

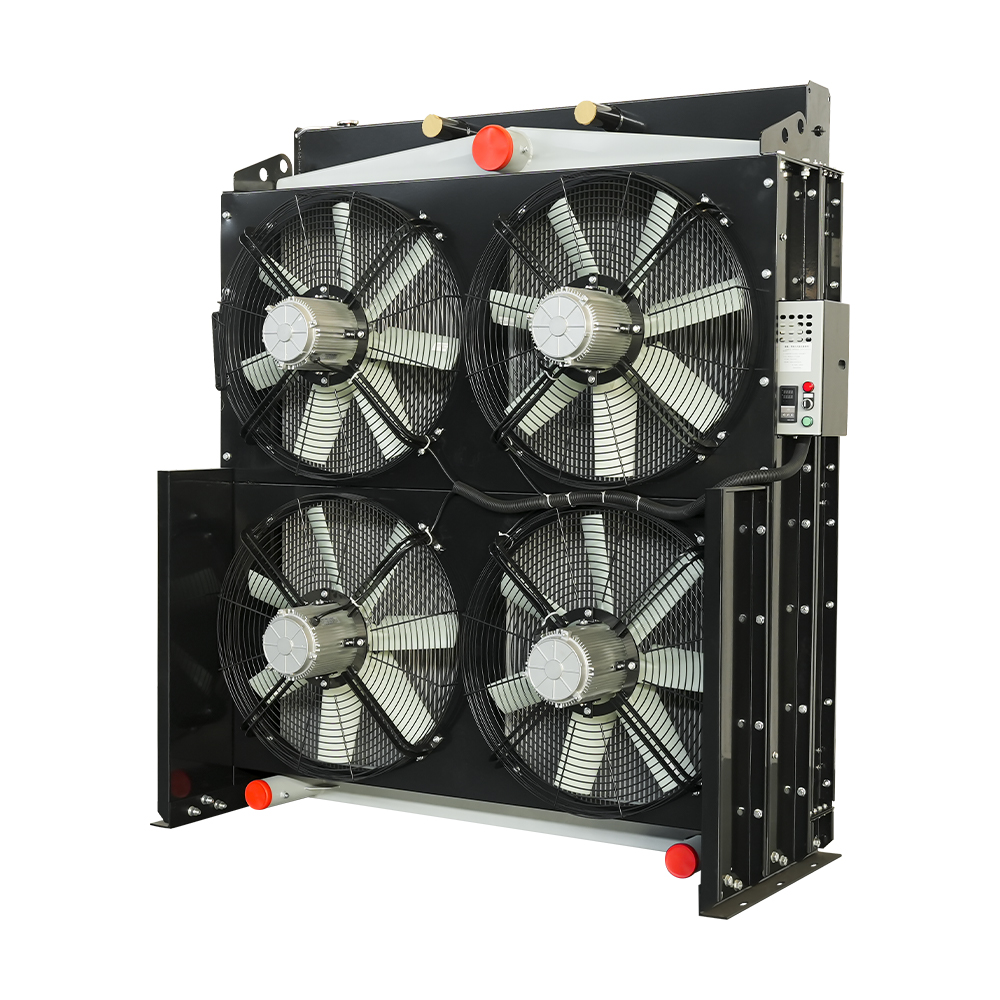

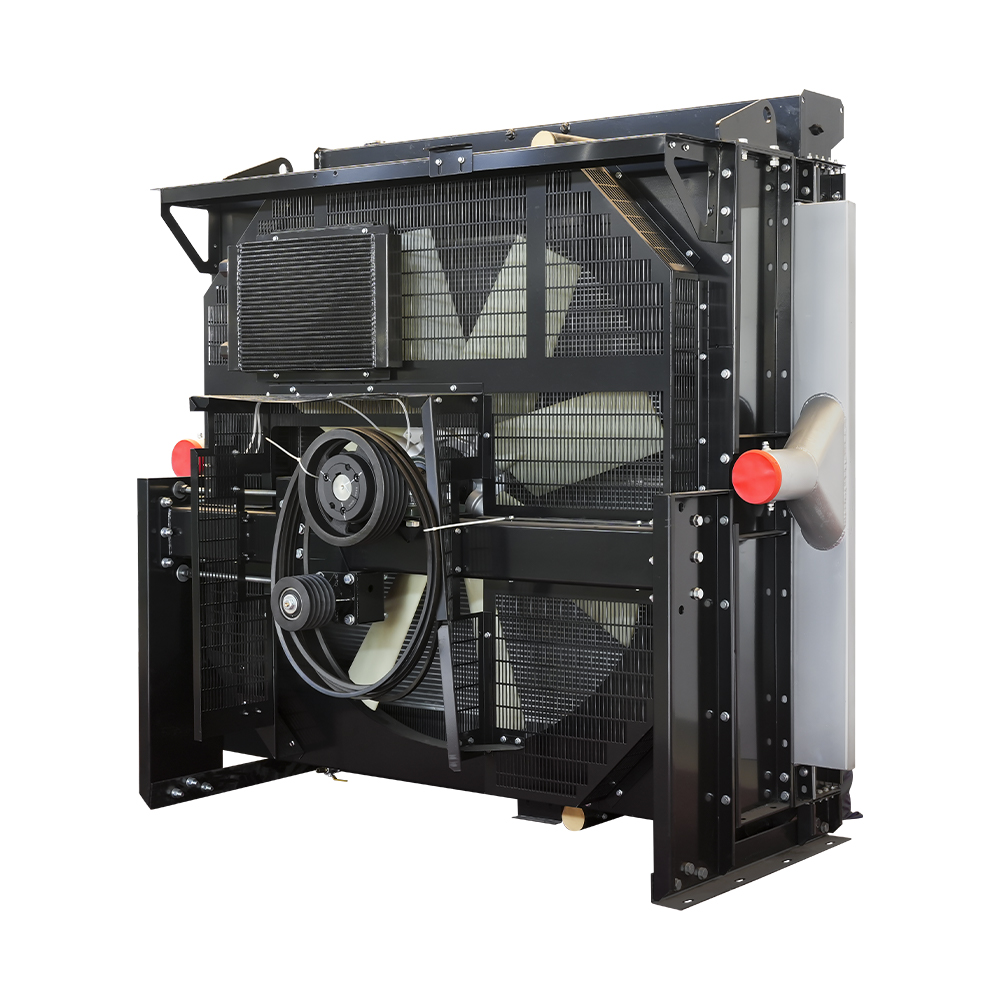

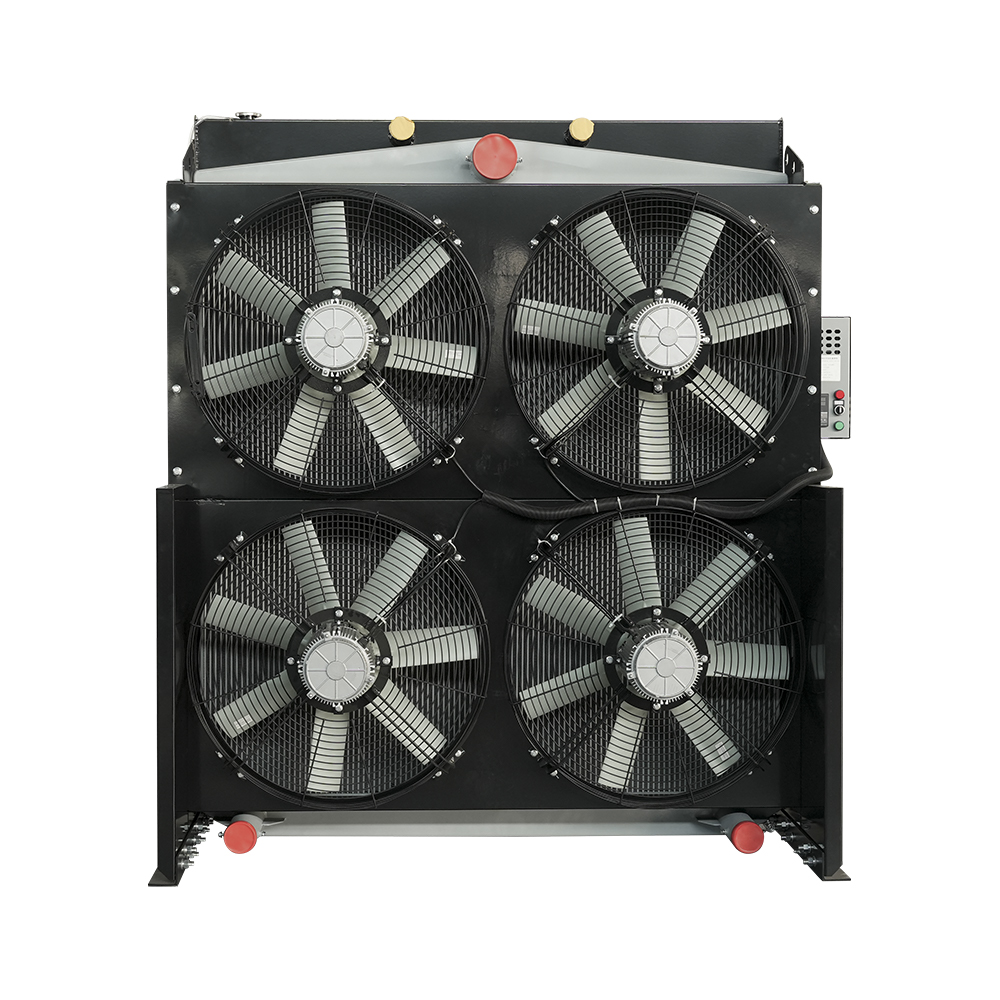

Specially designed for methanol-fueled generators, this radiator incorporates advanced corrosion protection and compatible seal materials to handle alternative fuel by-products. It ensures efficient heat exchange and reliable performance in industrial, research, and renewable energy applications.

 No. Model Installation Dimensions
Diameter*Center Height		 Radiator Dimensions
Height*Width*Thickness		 Water
Capacity
（L）		 Weight
（KG）		 Heat
Dissipation
Area
（M²）
1 1001582771-1 φ690*473mm 1006*800*466*400mm 15.8 0 54.8
2 1003004768-1 All-aluminum Φ520*389mm 876*700*462*282mm 10.8 0 34.5
3 WD618B Φ640*455mm 1005*735*410410mm 21 0 37.3
4 WP10D200E200 Φ800*581mm 1206*1003*599*380mm 30.8 0 32.7
5 WP10D200E300NG Φ800*581mm 1205*1056*599mm 35.8 74.5
6 WP10D238E200 Φ800*581mm 1206*1003*599*379mm 30.8 68 32.7
7 WP10D264E200 Φ800*581mm 1206*1003*599*380mm 30.8 74 32.7
8 WP10D288E200 Φ800*581mm 1206*1003*599*380mm 31.6 0 40.9
9 WP10D320E200 Φ790*646mm 1335*1005*530380mm 32.2 86 49
10 WP10G360E341 φ790*686mm 1375*1006*459*379mm 36.7 0 47
11 WP12D315E10 Φ880*686mm 1375*1006*499mm 36.7 88 47
12 WP12D317E200 Φ599*880mm 1335*1006*465mm 32 74 49
13 WP12D337E20 Φ890*756mm 1520*1056*491*379mm 37.6 0 56.5
14 WP12D353E200 Φ880*599mm 1335*1006*529*379mm 39.5 84 50
15 WP13D317E300NG-D Φ930*730mm 1465*1365*1190mm 82.3 0 10.1
16 WP13D385E200 Φ910*686mm 1375*1056*509*404mm 36.3 92 49.6
17 WP13D442E200 Φ910*686mm 1375*1056*506*404mm 37.7 100 68.8
18 WP13D490E310 Φ1010*711mm 1485*1256*515mm 44.7 135 91.3
19 WP13NG460E61-D motor drive 1575*1286*1135mm 48.4 361.5 152
20 WP2.3D25E200 Φ425*344mm 711*600*235*214mm 6.3 17.5 10.5
21 WP2.3D33E200 Φ475*344mm 711*600*235mm 6.3 18.5 9.3
22 WP2.3D40E200 Φ475*344mm 711*600*235mm 6.6 18.1 11.6
23 WP2.3D48E200 Φ475*374mm 821*616*403mm 6.5 26.2 12.2
24 WP2.3ND105E313 Φ475*369mm 935*666*435*295mm 11 0 19.4
25 WP2.3ND66E310 Φ475*297mm 932*666*385mm 11 0 19.4
26 WP3.2D36E310 φ480*359mm 741*666*235*185mm 7 0 12.3
27 WP3.2D44E310 φ480*359mm 741*666*285*235mm 7.3 0 15.3
28 WP3.2G61E316 φ480*359mm 741*646*235*185mm 6.7 0 14.5
29 WP3.2G75E440 φ510*375mm 738*626*274mm 7.4 19.1
30 WP3.6ND88E430 Φ565*414mm 842*766*486*336mm 13.1 27.4
31 WP3ND132E313 φ510*377mm 842*716*466*303mm 12.7 41.5 31.6
32 WP4.1D100E200 Φ520*414mm 842*716*486406mm 11.6 34 18.3
33 WP4.1D105E310 Φ575*414mm 842*716*413mm 12.2 28 25.3
34 WP4.1D113E200 Φ565*414mm 842*716*496*336mm 11.6 31.86 18.3
35 WP4.1D66E200 Φ520*414mm 842*716*305mm 12.2 24.94 38.6
36 WP4.1D66E310 φ575*414mm 842*716*436*336m 11.3 33.1 14.6
37 WP4.1D80E200 Φ520*414mm 842*716*355mm 11.6 23.7 18.3
38 WP4.1G100E311 φ570*414mm 842*716*380*255mm 11.6 0 18.3
39 WP4.1G140E301 Φ580*451mm 975*806*464*339mm 21.5 0 24.6
40 WP4.6ND125E430 Φ690*481mm 1035*806*594*404mm 22.4 37.1
41 WP4.6ND148E310 Φ690*489mm 995*815*488*390mm 14.8 0 37.1
42 WP4.6ND148E310 Φ690*489mm 992*816*488*308mm 15.6 0 46.2
43 WP4.6NG200E471 φ635*597mm 1092*766*396*326mm 13.1 0 25.4
44 WP4D100E200 Φ525*377mm 842*716*474*331mm 11.6 34.3 18.3
45 WP4D108E200 Φ630*432mm 932*766*475475mm 13.6 0 18.3
46 WP4D66E200 φ495*344mm 711*600*385*185mm 6.3 18.8 10.5
47 WP6D132E200(DHP06D0540) Φ630*511mm 1035*806*574*404mm 22.4 62 37.1
48 WP6D132E200 Φ635*597mm 1073*766*479399mm 12.7 42.4 21.6
49 WP6D152E200 Φ635*597mm 1092*766*399mm 12.7 0 21.6
50 WP6D167E200 Φ635*551mm 1030*766*400mm 12.6 38.4 19.9
51 WP6G190E330 φ700*559mm 1092*816*479*329mm 15 55.5 40.2
52 WP6G240E330 Φ790*541mm 1095*906*529*378mm 26.8 57.1
53 WP7D185E460 Φ730*577mm 1245*906*549mm 31.8 36
54 WP7D216E310 Φ730*511mm 1175*906*600*380mm 27.4 0 50.5
55 WP7D264E310 Φ730*511mm 1175*905*600*505mm 28.5 0 77.2
56 WP7D264E460 φ730*577mm 1245*906*549mm 35.6 77.2
57 WP7G300 φ730*581mm 1175*906*560*380mm 26.2 0 50.5
58 GK---58KW-WP2.3B80E201-00 Heat exchanger Heat exchanger Heat exchanger Heat exchanger
59 GK---WP10B325E200-0000201 Heat exchanger 1066*1010*400mm Heat exchanger 136 Heat exchanger
60 GK---WP10B435E200-0000201 Heat exchanger 1066*1010*400mm Heat exchanger Heat exchanger
61 GK---WP13B525E200-0000201 Heat exchanger 1086*1010*400mm Heat exchanger Heat exchanger
62 GK---WP13B600E220-0000201 Heat exchanger 1328*400*1010mm Heat exchanger Heat exchanger
63 GK---WP4.1B110E201-000020 Heat exchanger 240*555*183mm Heat exchanger 0 Heat exchanger
64 GK---WP4.6-000020100 Heat exchanger 920*665*405mm Heat exchanger 0 Heat exchanger
65 HGPBJ---169KW-WP6B230E200 Heat exchanger 1260*950*480mm Heat exchanger Heat exchanger
66 HGPBJ---WP10D200E200-1000 Heat exchanger 1260*950*480mm Heat exchanger Heat exchanger
67 HGPBJ---WP10D320E200-1000 Heat exchanger 1500*1200*500mm 70 2.4
68 HGPBJ---WP10D320E350-1000 Heat exchanger 1500*1200*500mm 70 2.4
69 HGPGK---100KW-WP4.1D100E2 Heat exchanger 261*555*183mm Heat exchanger 0 Heat exchanger
70 HGPGK---300KW-WP12D317E20 Heat exchanger Heat exchanger Heat exchanger 0 Heat exchanger
71 HGPGK---490KW-WP13B670E22 Heat exchanger Heat exchanger Heat exchanger 427 Heat exchanger
72 GC-WP13G530-DY-B-00023000 Φ885*734mm 1550*1294*686mm 42.6 103.6
