SDEC Generator Radiator

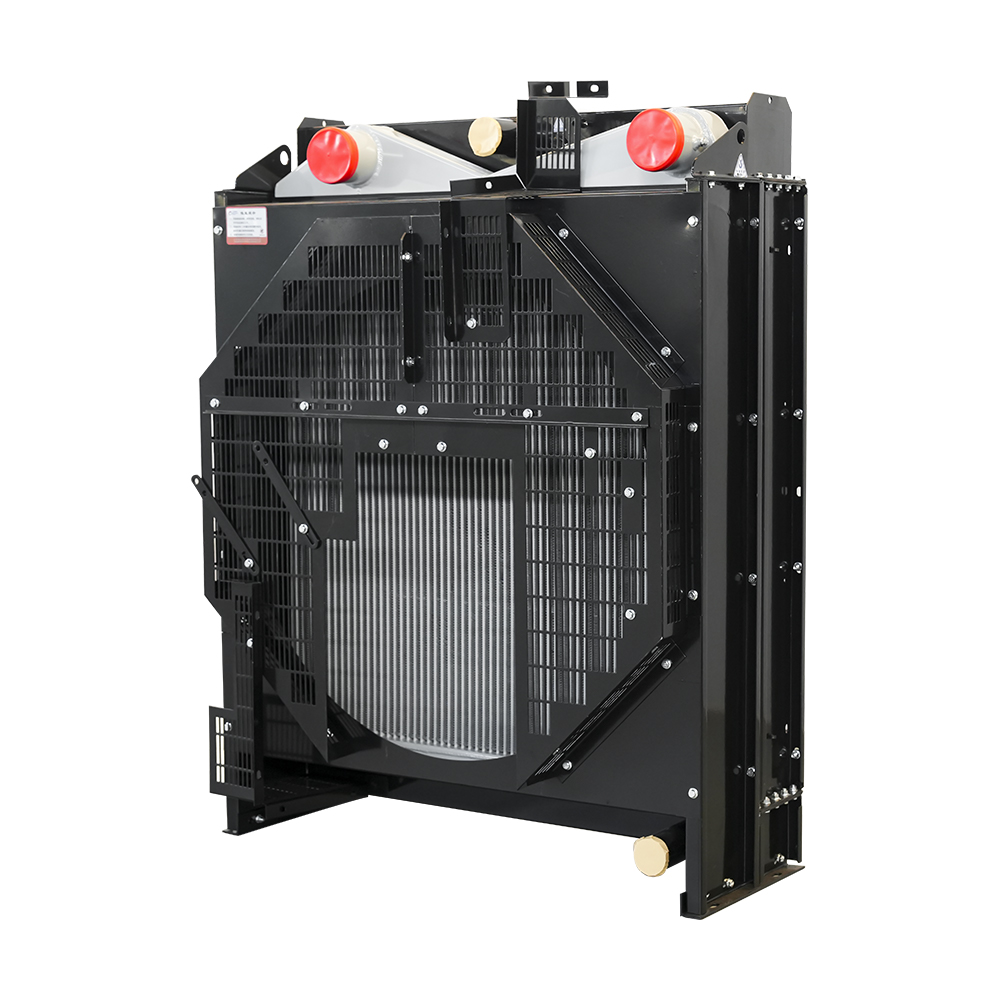

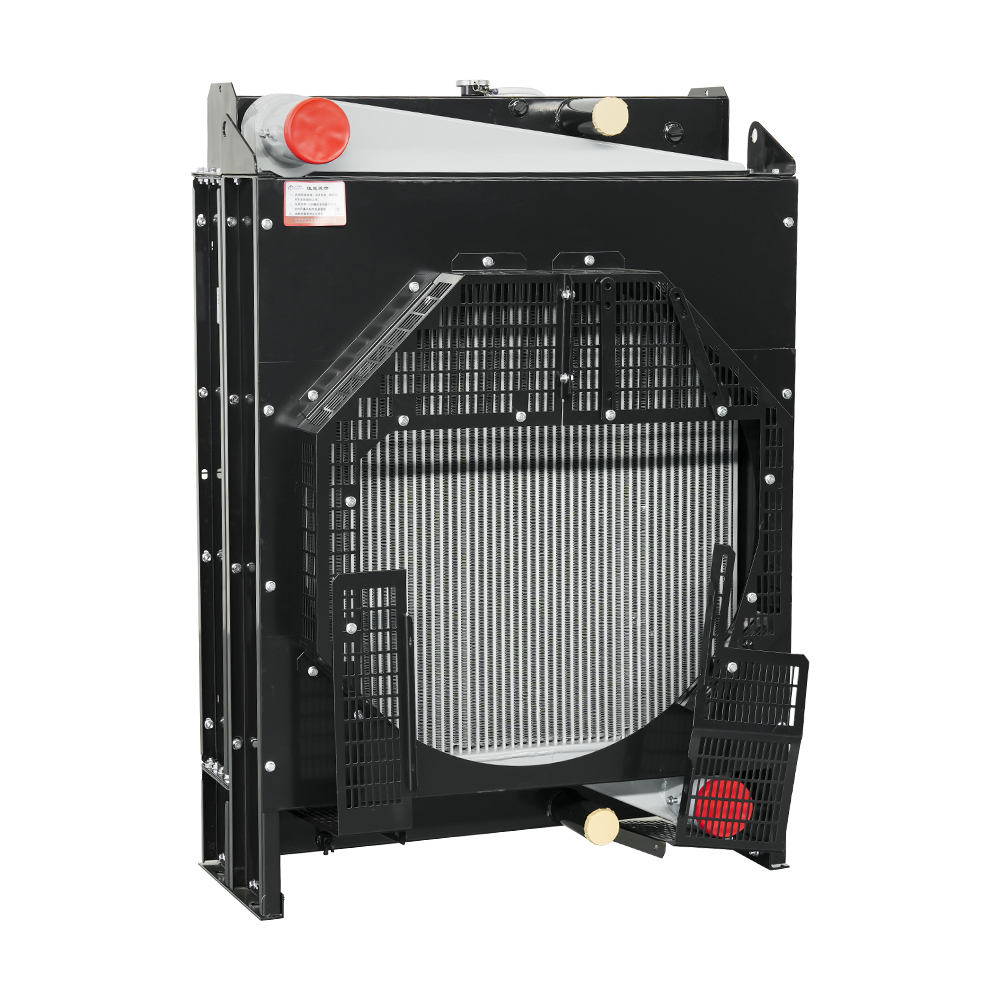

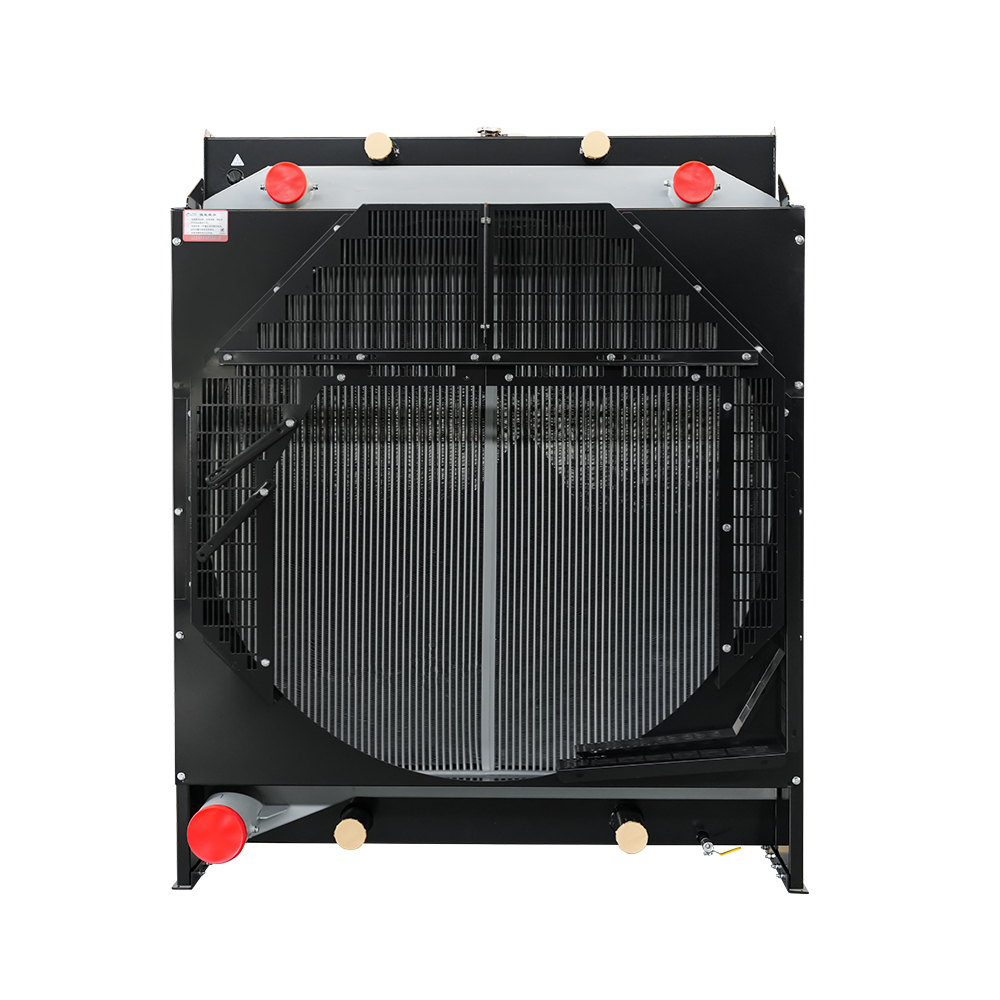

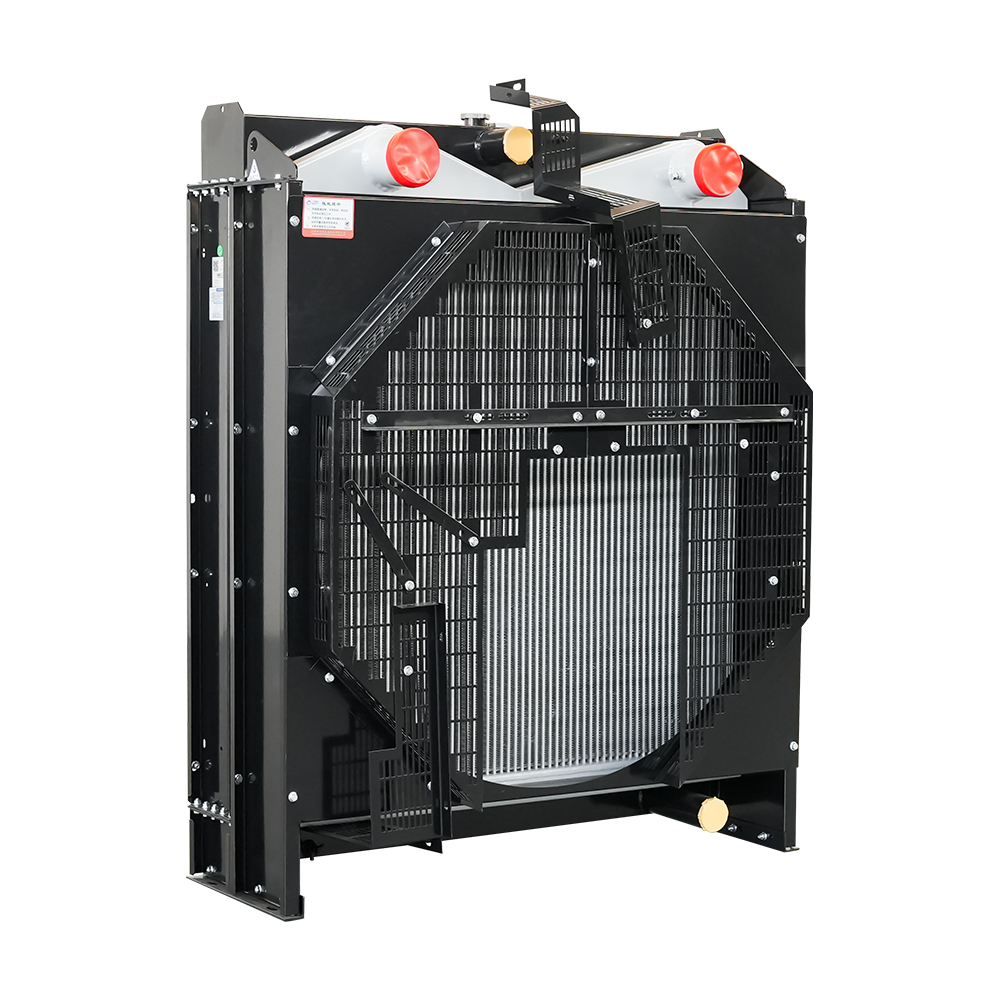

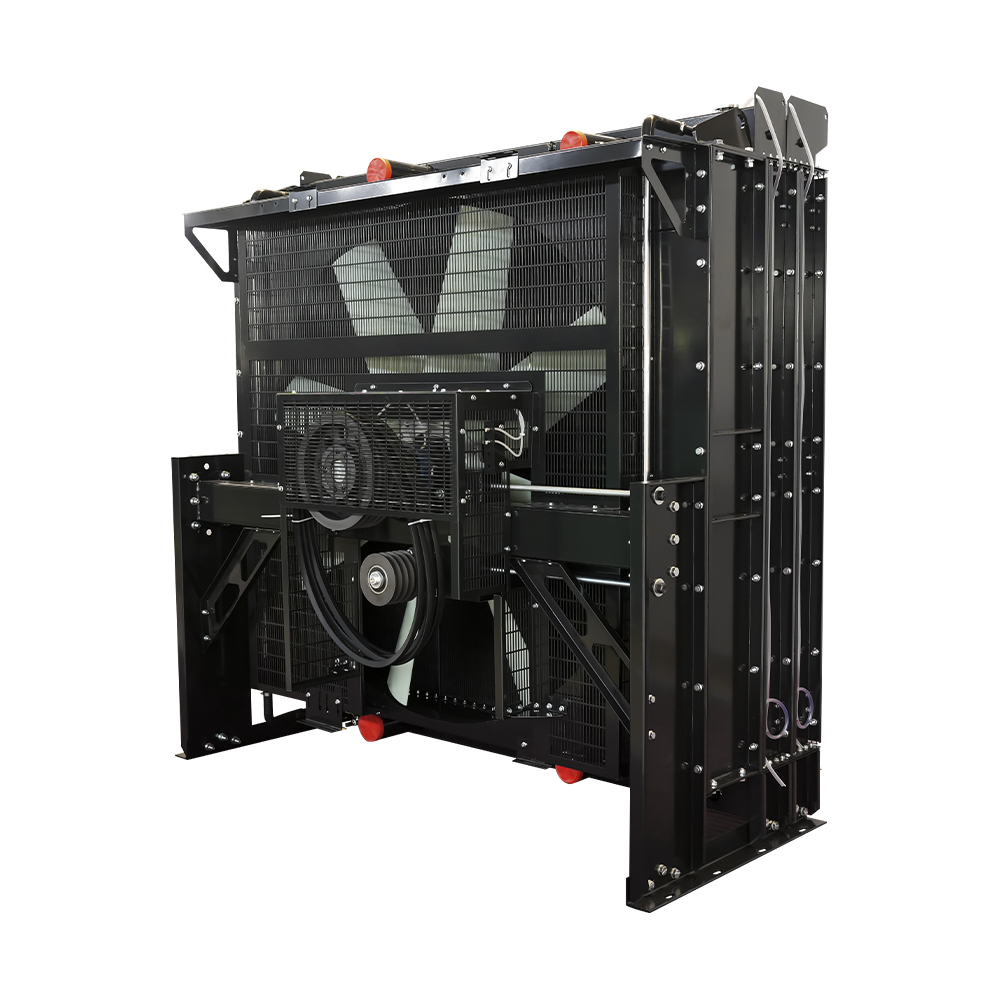

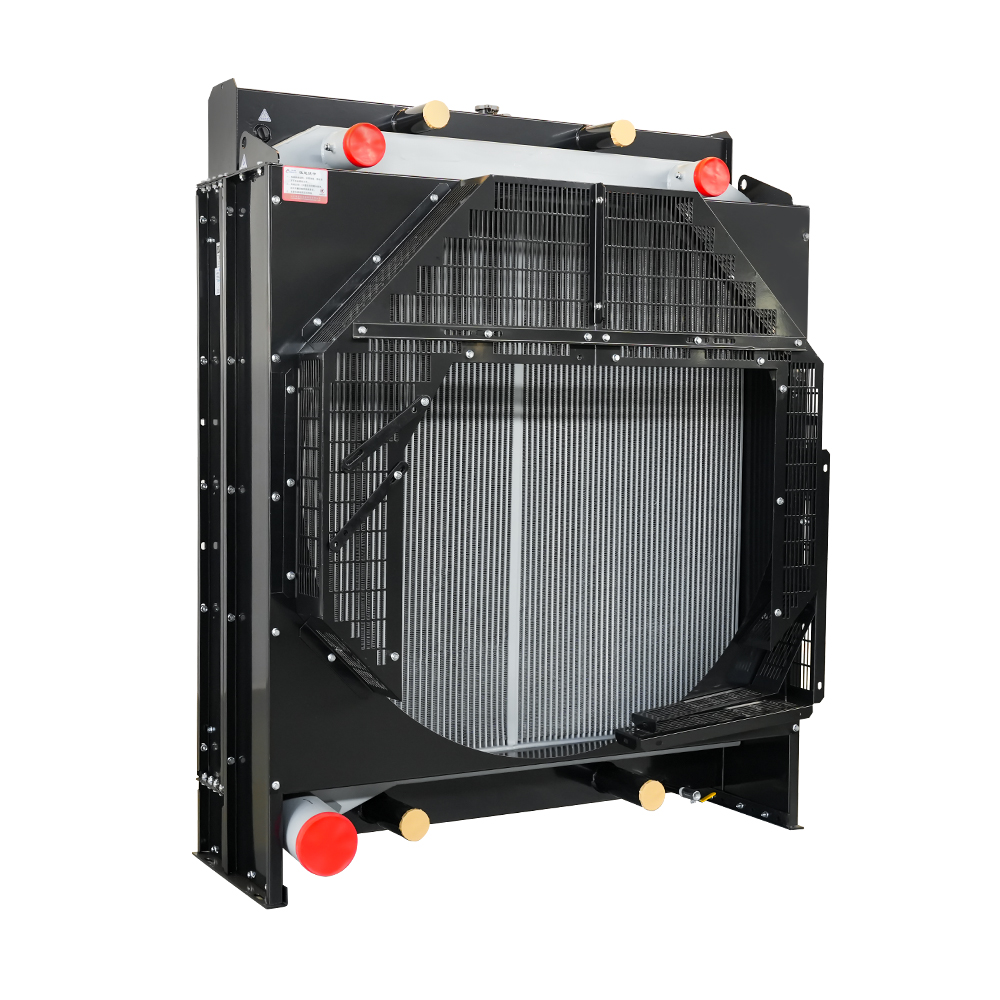

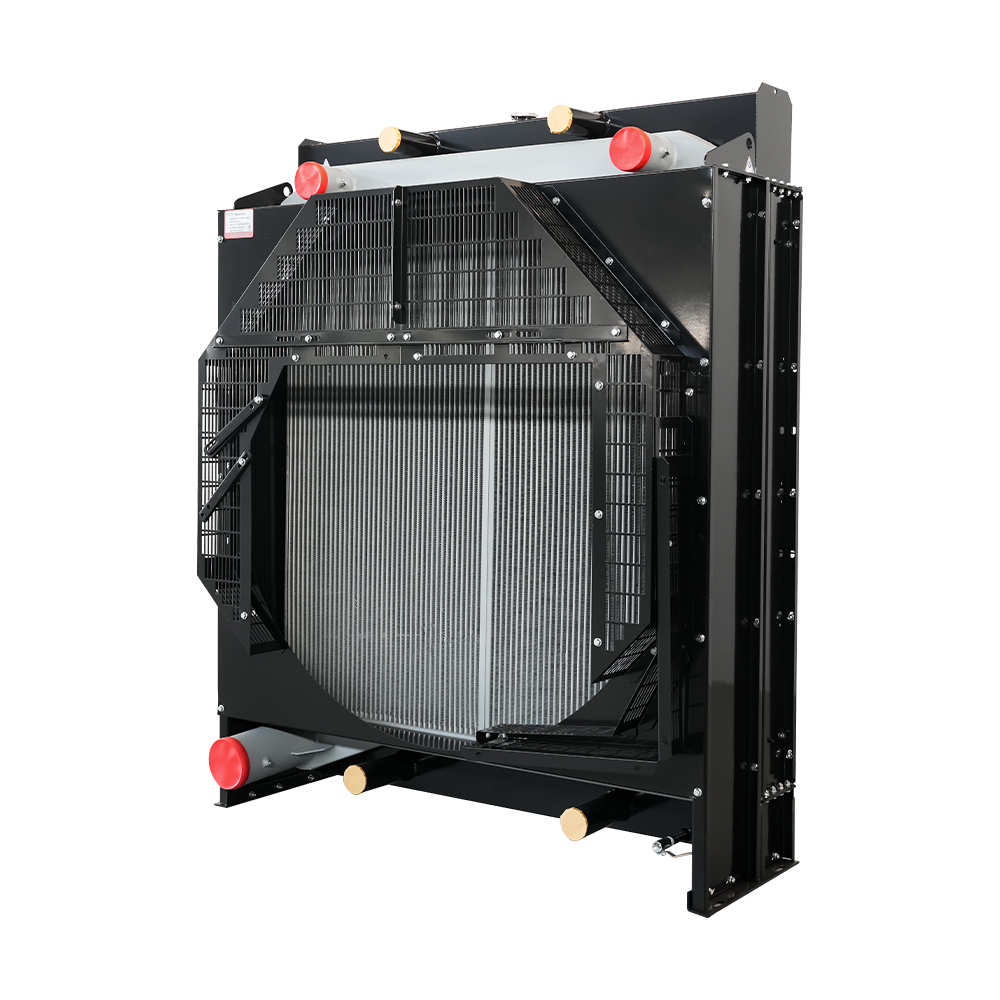

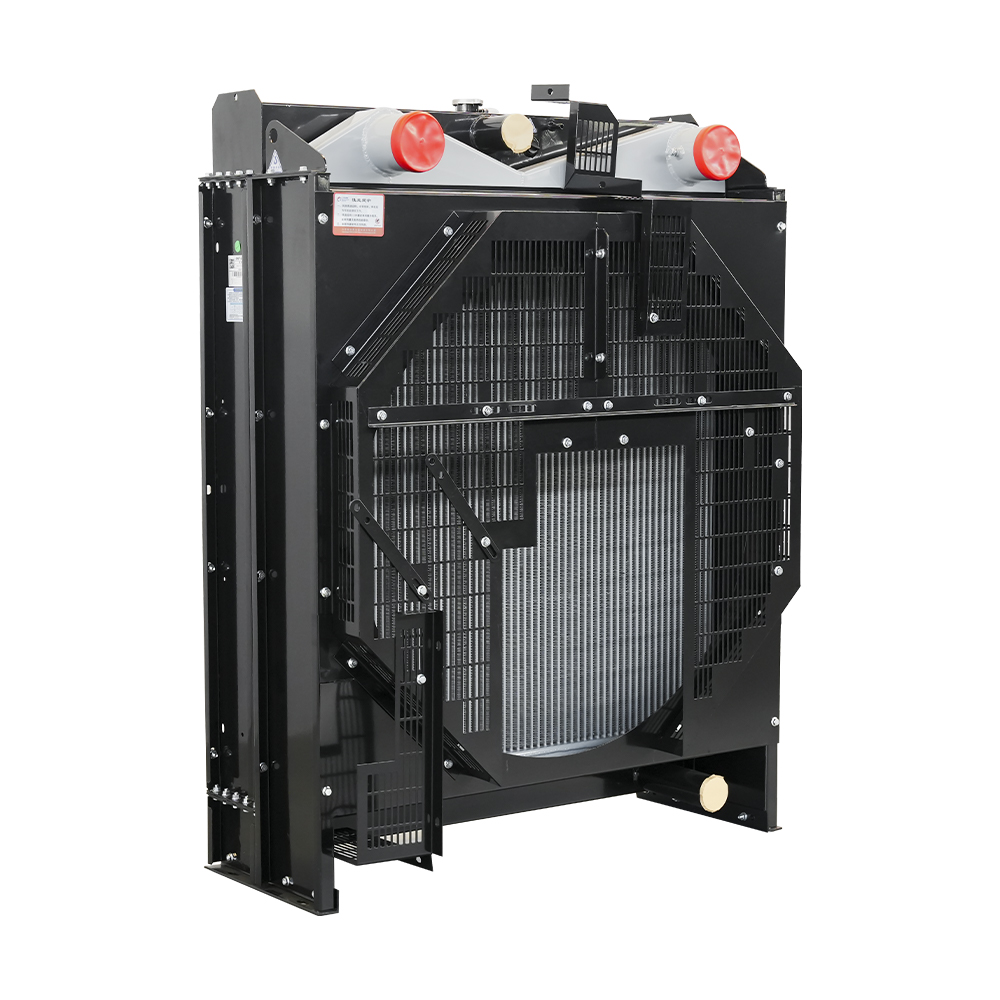

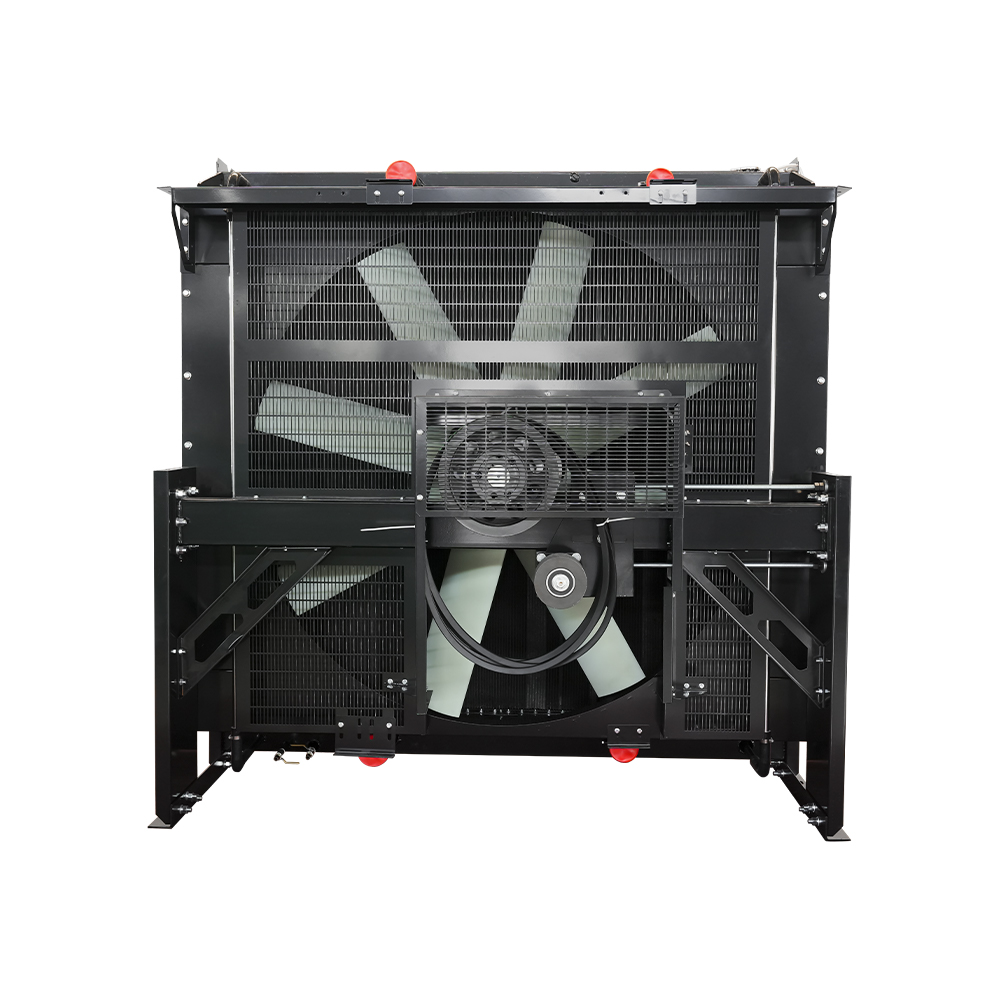

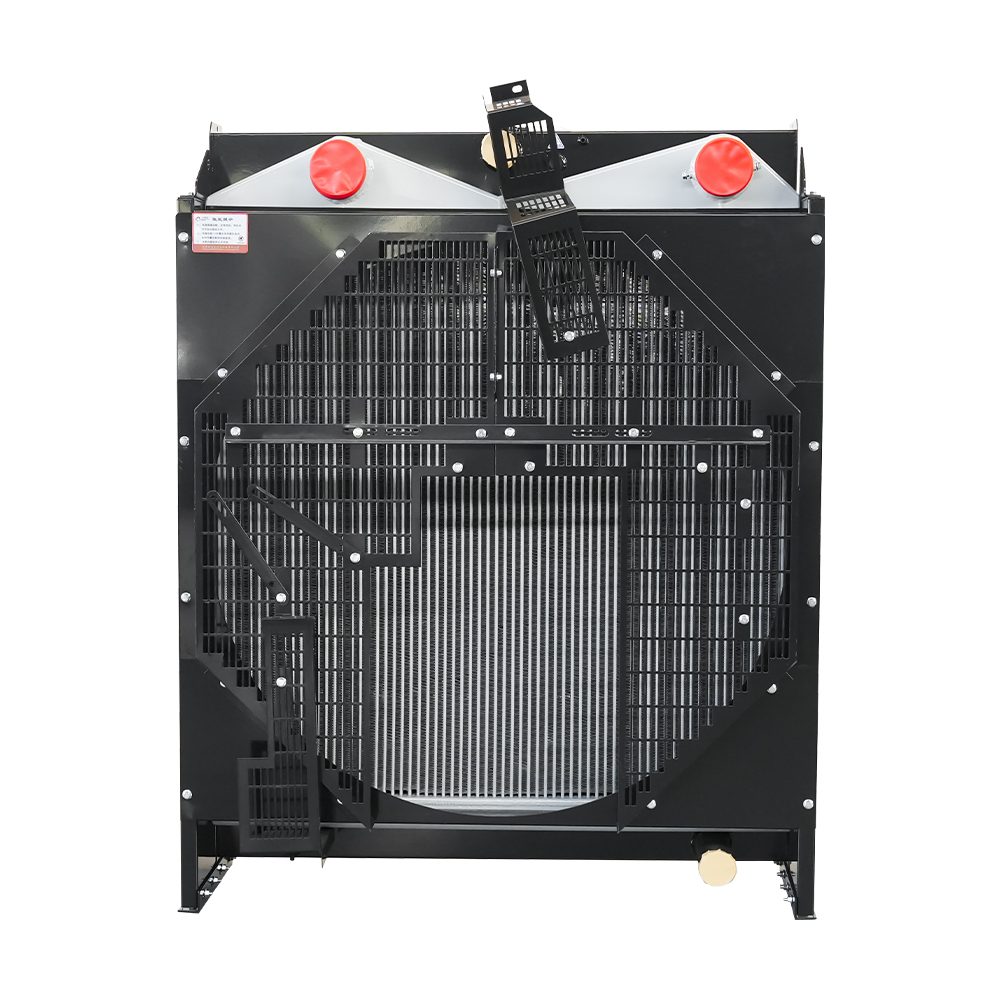

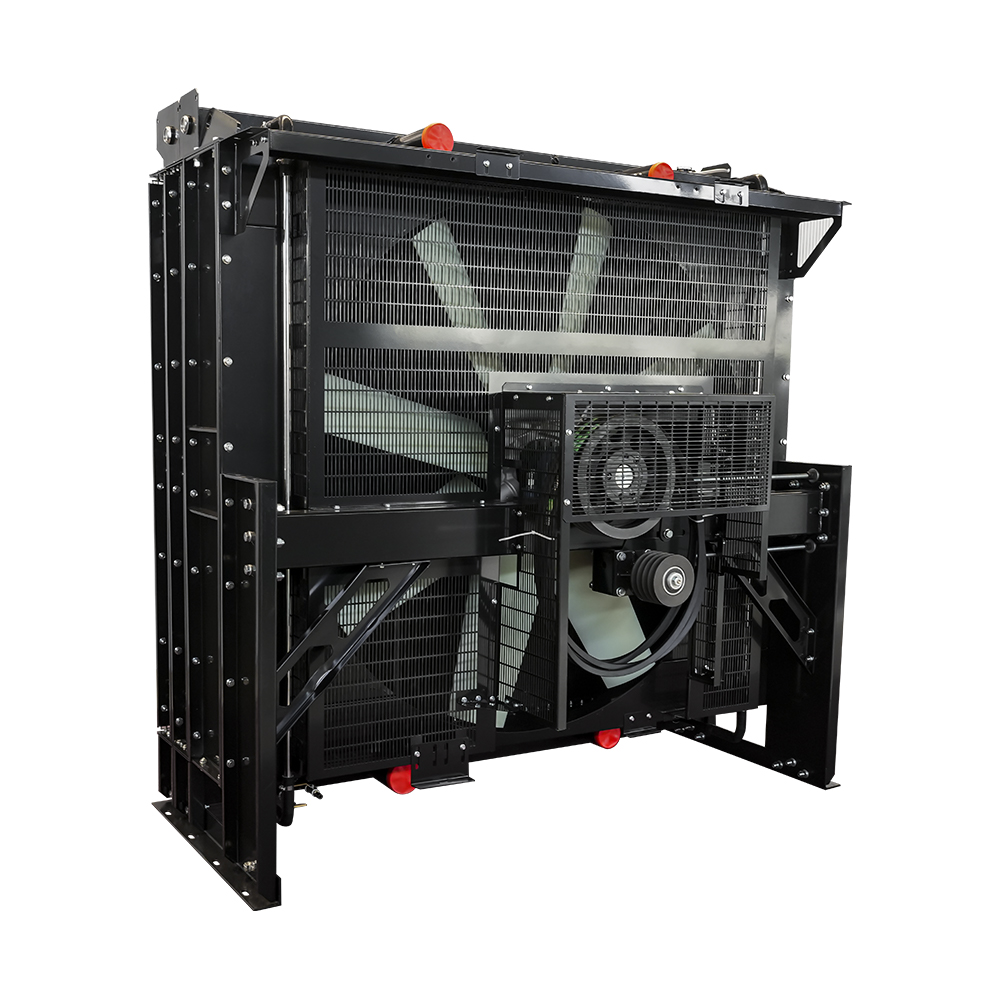

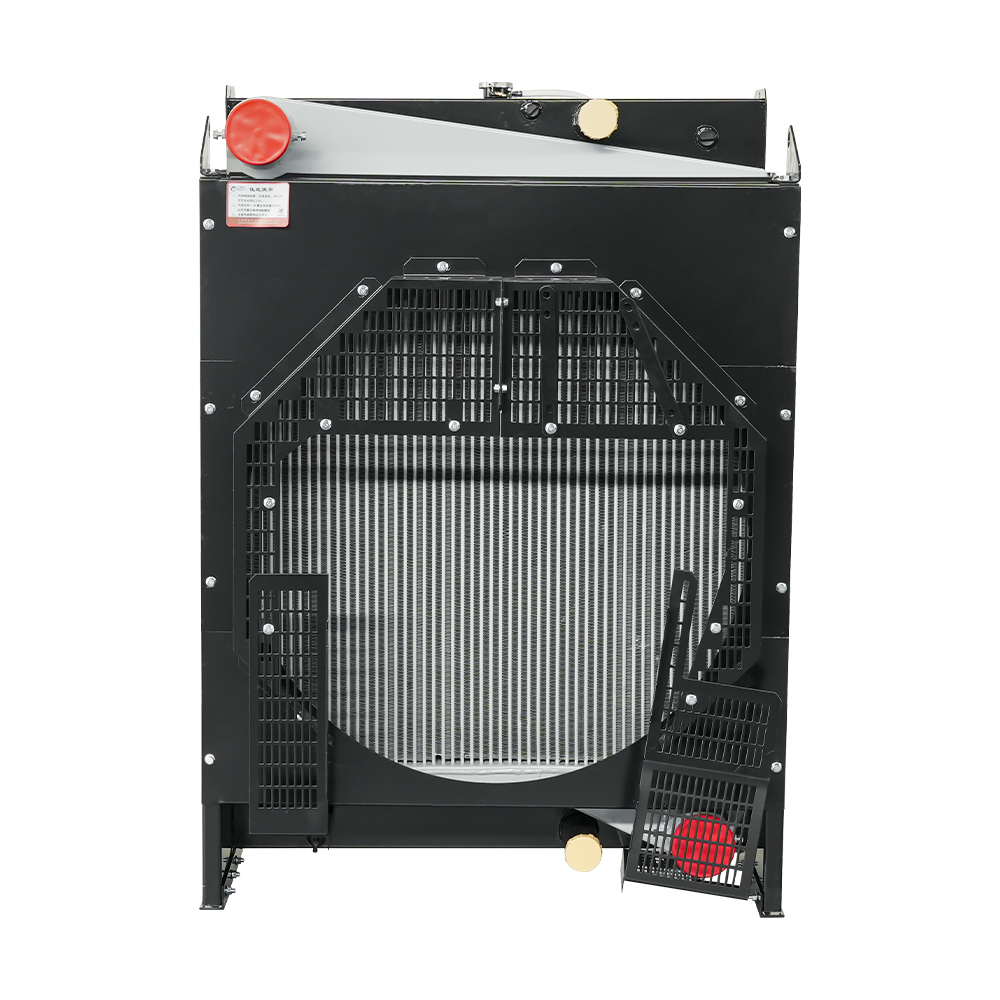

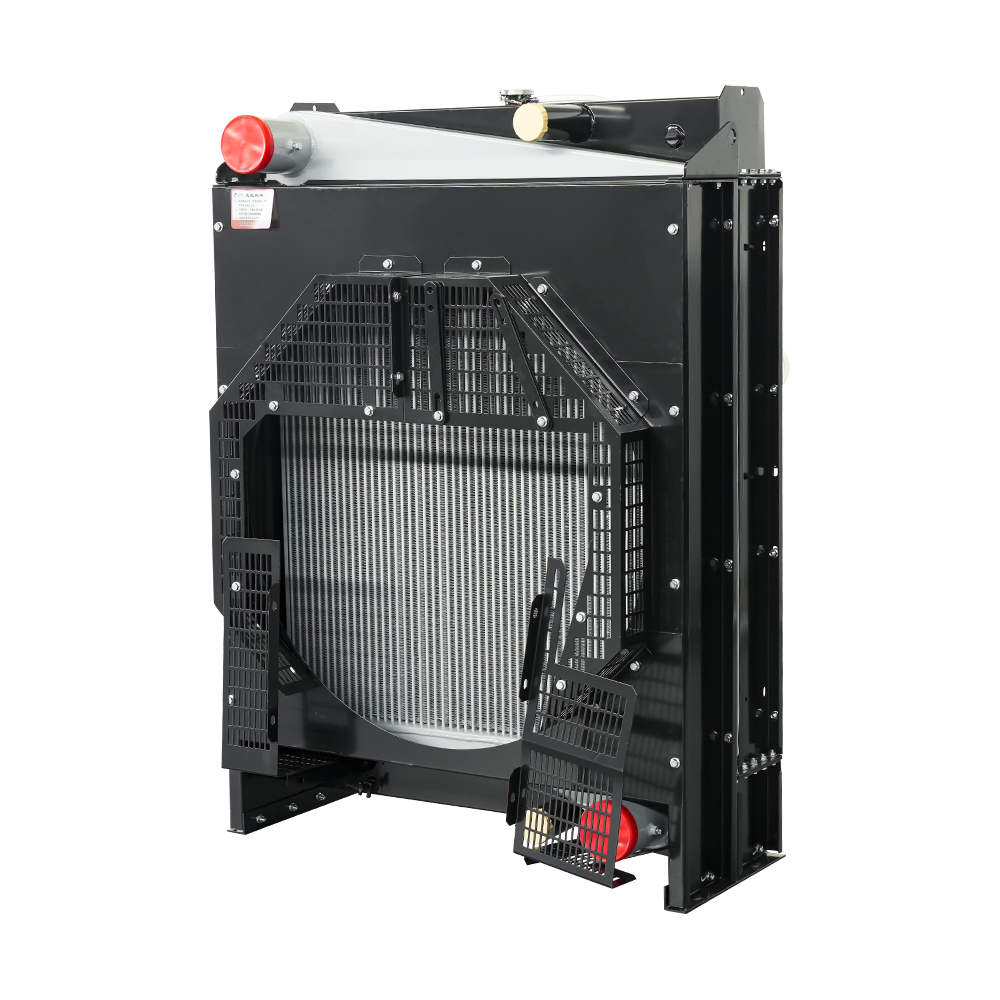

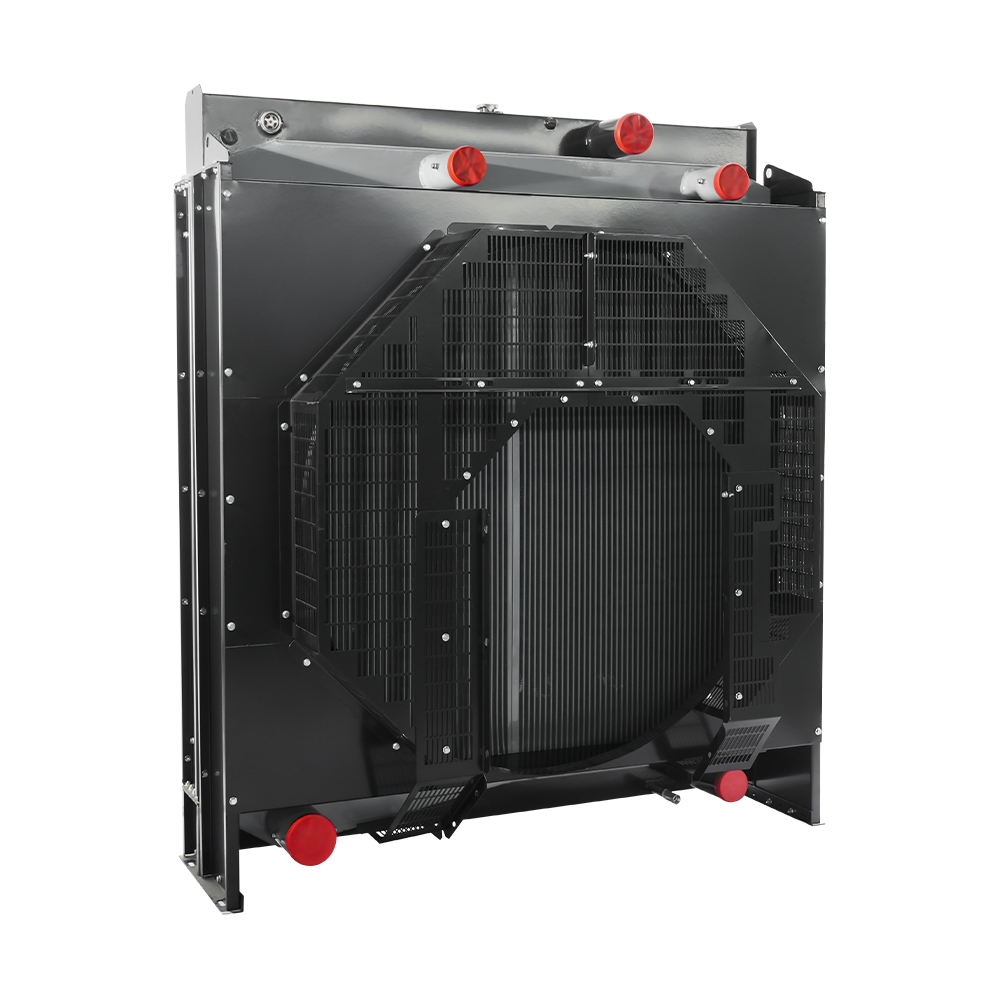

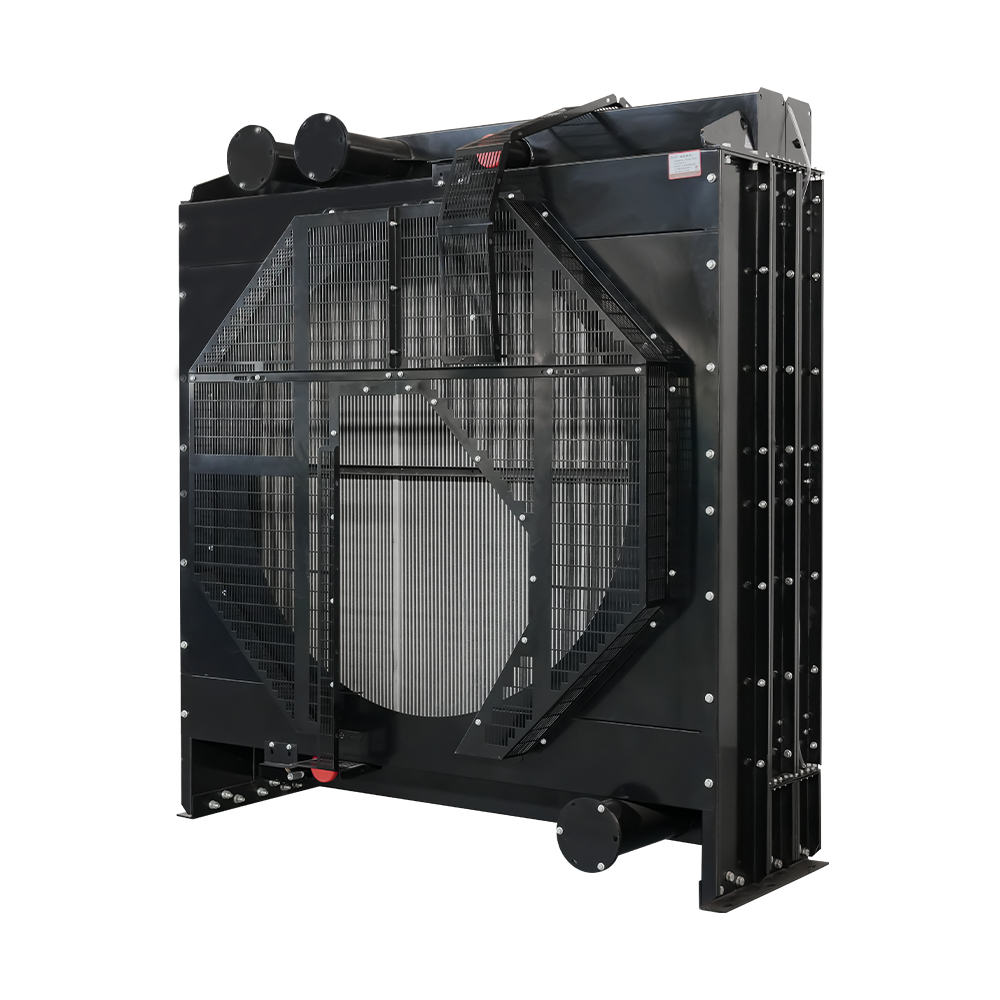

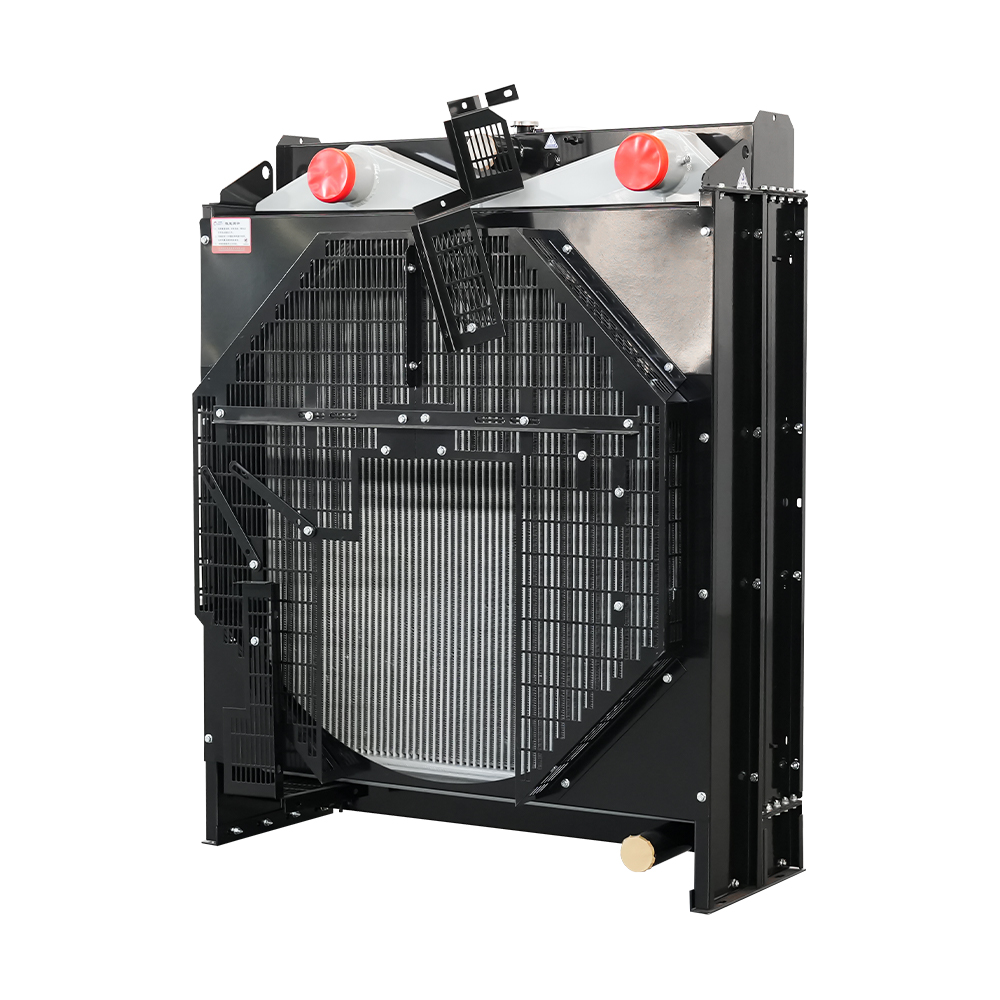

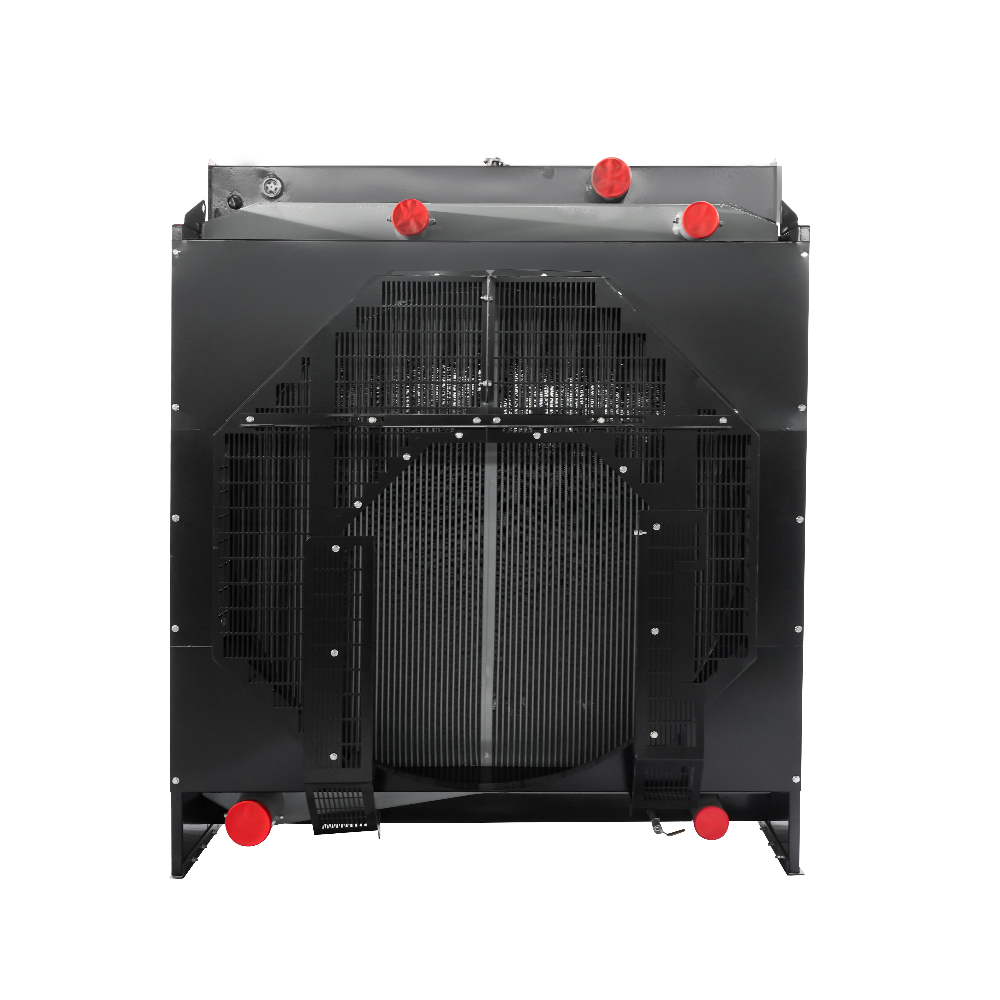

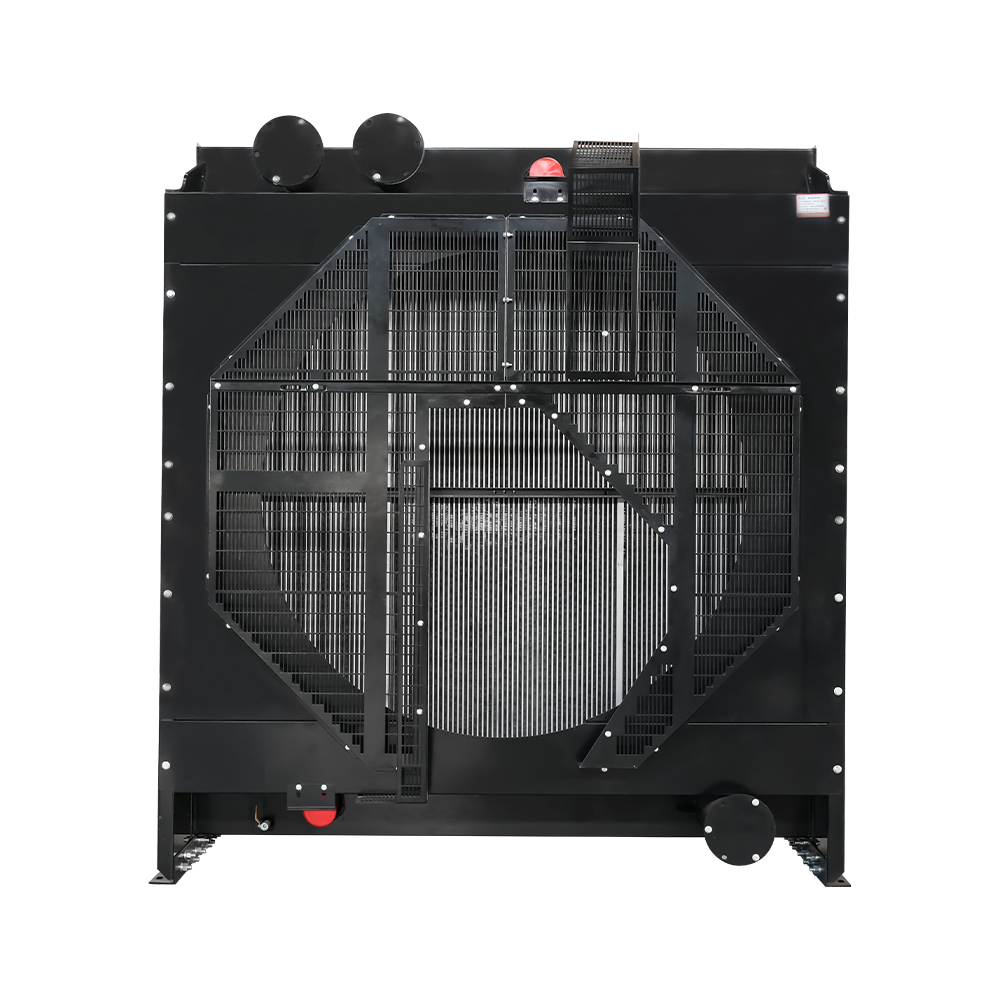

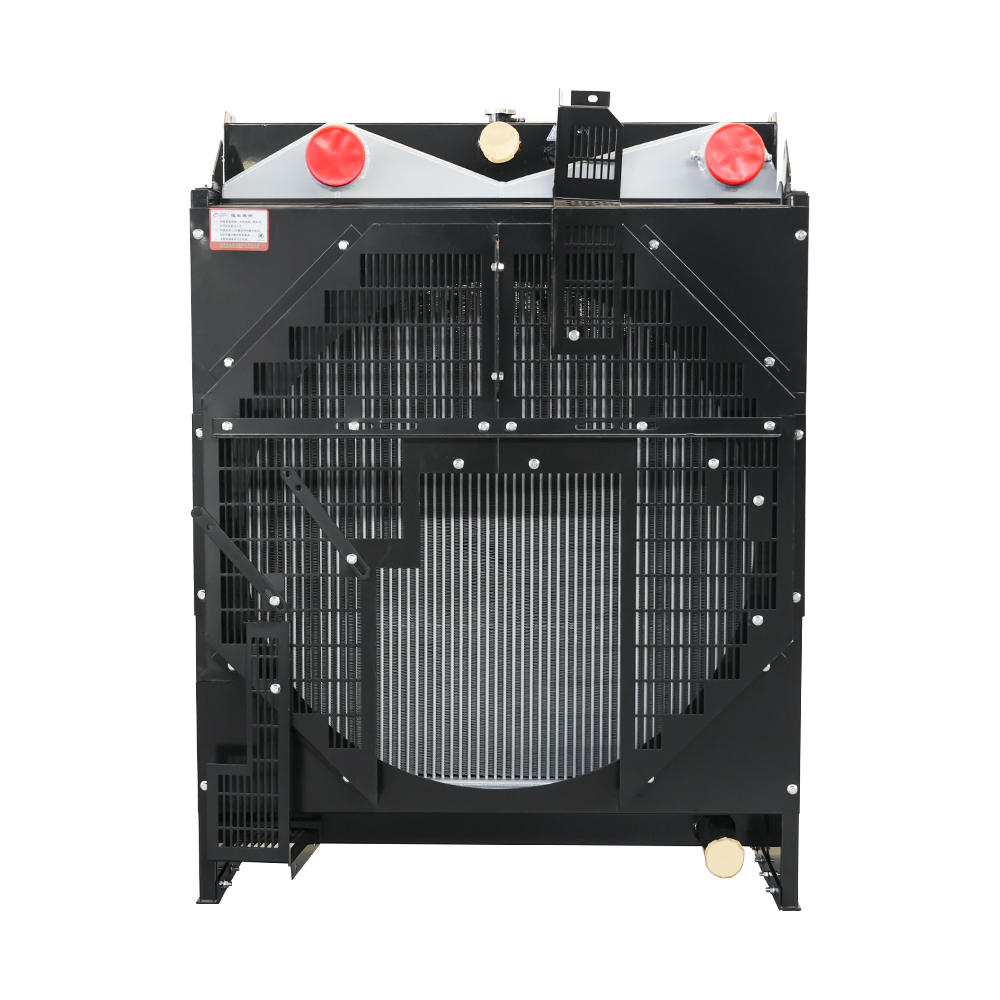

Built for Shanghai Diesel Engine Co. (SDEC) generator sets, this radiator combines heavy-duty materials with precision manufacturing to provide stable cooling under varying loads. Its high-efficiency core maximizes heat exchange, while robust tanks and corrosion-resistant finishes ensure long service life. Perfect for urban backup systems, remote operations, and industrial prime power applications.

No. Model Installation Dimensions
Diameter*Center Height
（Φ550*600mm）		 Radiator Dimensions
Height*Width*Thickness		 Water
Capacity
（L）		 Weight
（KG）		 Heat
Dissipation
Area
（M²）
1 12M36KTA-G3 φ1840*1185mm 2314*2119*781mm 112.7 316.5
2 12V135AZD Φ1160*766mm 1545*1306*522*337mm 38 90.5 61.5
3 12V135AZLD Φ1160*766mm 1545*1300*624.5*549.5mm 38 125 61.5
4 12V135BZLD Φ1160*766mm 1545*1356*615mm 41.1 127 79.3
5 12V135BZLD-500KW Φ1350*861mm 1803*1456*625*529mm 46.7 150.5 101.6
6 12V138AZLD-KP Φ1180*818mm 1765*1456*650*560mm 46.7 153.5 101.6
7 4135D Φ658*459mm 932*816*337*307mm 11.3 28.5 47.9
8 6135AD Φ680*471mm 995*856*386mm 18.8 42.5 22.9
9 6135AZLD Φ890*625mm 1269*956*599505mm 23.8 75 35.6
10 6135BZLD Φ890*606mm 1238*956*504mm 23.1 79 46.3
11 6138CZLD Φ1000*676mm 1410*1106*600*380mm 27.7 92 59.4
12 644 Φ700*720mm 1249*906*457*337mm 22.9 51.5 33
13 646 Φ890*631mm 1265*1006*486*431mm 25.1 59 37.6
14 DCV1300 φ1740*1040mm 2199*1919*772*512mm 82.7 267.8
15 DSV565 Φ1350*861mm 1803*1456*625*529mm 46.7 160 101.6
16 DSV630 Φ1350*921mm 1885*1625*625mm 60.2 208 164.1
17 DSV680 Φ1350*921mm 1885*1625*625mm 60.2 211.5 164.1
18 G128ZLD-I Φ890*644mm 1321*1226*576*371mm 32.4 74 37.6
19 G128ZLD-II Φ970*714mm 1461*1395*554*374mm 30.2 92 50.4
20 HGPBJ-600KW-DCV550-100040 Heat exchanger 1851*1500*515mm Heat exchanger Heat exchanger
21 HGPBJ---600KW-SD510-610-1 Heat exchanger 1851*1500*515mm Heat exchanger 0 Heat exchanger
22 HGPBJ---KPV1100-100040100 Heat exchanger 2240*1830*675mm Heat exchanger Heat exchanger
23 HGPBJ---SYZ338TAD123-1000 395*480mm 2050*1830*930mm 171 11.25
24 JMV840-D Electric Motor Drive 1923*1772*787mm 64.4 120.2
25 KD15H375 Φ970*716mm 1445*1106*550*483mm 29 106 47.6
26 KP12G610-G3 φ1350*951mm 1875*1456*650*403mm 65.4 193 141.1
27 KP206 φ800*720mm 1175*1006*467mm 28.3 0 40.9
28 KP310 Φ1000*676mm 1405*1105*600*505mm 27.7 101 59.4
29 KP350 Φ1000*676mm 1405*1105*600*505mm 27.7 103 59.4
30 KP425 Φ960*715mm 1480*1156*590507mm 38 114 61.1
31 KP441 Φ1030*716mm 1475*1155*590*510mm 38 122 61.1
32 KP540 Φ1160*766mm 1545*1306*635*435mm 41.5 130.5 104.7
33 KP9D340 Φ810*581mm 1180*956*554*484mm 26 79 30.9
34 KP9DG34 Φ795*646mm 1305*1055*525mm 31.8 102 68.8
35 KPG128ZLS Φ1030*716mm 1475*1355*590*505mm 45 136.5 71.7
36 KPG128ZLS φ1030*716mm 1475*1356*590*380mm 41.3 138 101.1
37 KPV1100-D Four Motors 2100*1870*870*567mm 77.2 420 195.9
38 KPV1300-D Four Motors 2054*1871*850mm 71.4 425 215.4
39 KPV441 Φ960*716mm 1480*1156*590507mm 38 113.5 61.1
40 KPV720 Φ1350*915mm 2000*1736*730*634mm 56 246.5 193.5
41 KPV800-D Electric Motor Drive 1964*1719*787mm 64.4 120.2
42 KPV936 Φ1350*911mm 2000*1736*730*634mm 59.7 250.5 191.1
43 KT30G1270TLD-D Electric Motor Drive 2065*1870*870*512mm 77.4 238.1
44 KT30G1360TLD-D Φ822*1040mm 2200*1965*820mm 107.7 503 267.8
45 KTG128ZLS Φ1030*716mm 1475*1356*510mm 45 137.5 71.7
46 QN13H517 Φ1050*730mm 1461*1395*539*346mm 40.8 96.5 83.2
47 QN15H571 Φ1160*766mm 1545*1305*635*435mm 39.4 157 75.4
48 QN28H1100 Φ1415*912mm 1995*1726*730*500mm 59.7 253 191.1
49 QN28H1210-D Four Motors 2065*1870*870*512mm 77.2 413.5 195.9
50 QN32H1480-D- Φ1*1040mm 2169*1919*818mm 82.7 504.5 267.8
51 QN8H217 Φ810*581mm 1180*956*554*379mm 26.8 85 38.6
52 QN8H245 Φ810*581mm 1180*956*554*379mm 27.8 87.5 53.6
53 QN8H245-D Electric Motor Drive 1175*956*720mm 29 121 66.8
54 QN9H340-1-308 Φ795*646mm 1315*1005*580*525mm 30.2 0 65.1
55 QN9H340-308 Φ795*646mm 1305*1056*579*404mm 31.8 94 68.8
56 QND9H245-G3 φ810*581mm 1175*956*554*379mm 27.8 87 53.6
57 QND9H340-G3 Φ795*646mm 1305*1056*579*404mm 31.8 102 68.8
58 SC13G420D2T3 Φ960*716mm 1479*1156*590*380mm 38 0 61.1
59 SC15G500D2T3 φ960*716mm 1475*1156*590*380mm 37.9 114 53
60 SD1400-D Electric Motor Drive 2205*1965*818*512mm 82.7 507 267.8
61 SD515 Φ1160*766mm 1545*1306*635*435mm 39.4 138 75.4
62 SDD206 Φ795*646mm 1305*1055*525mm 31.8 68.8
63 SDV450 Φ960*716mm 1475*1155*510mm 37.9 114.5 53
64 SY302TAD97A Φ1420*992mm 2144*1819*751*489mm 83.2 278 195.9
65 SY302TAD97-D Φ1*990mm 2054*1819*847mm 77.2 195.9
66 SY970-D Four Motors 2070*1906*875*512mm 77.2 422 195.9
67 SYD83TAD23 Φ810*581mm 1180*956*554*379mm 28.9 81 38.6
68 SYD88TAD26 Φ810*567mm 1180*956*554554mm 30 83.5 53.6
69 SYG148TAD42 Φ1090*716mm 1475*1256*590*380mm 45.2 125.5 111
70 SYG148TAD42T3 φ1090*716mm 1475*1256*590*380mm 43.2 0 91.3
71 SYG157TAD50 Φ1090*716mm 1475*1256*590*380mm 45.2 113.8
72 SYG157TAD50T3 φ1090*716mm 1475*1256*590*380mm 45.2 140.5 113.8
73 SYG266TAD75G3 φ1340*921mm 1845*1626*673*450mm 69.9 0 191.3
74 SYG283TAD79 Φ1416*912mm 1995*1726*634mm 59.7 191.1
75 SYG302TAD88A Φ1420*912mm 2054*1819*771*511mm 83.2 278 195.9
76 SYG302TAD88-D Φ1*990mm 2064*1819*847mm 77.2 159.9
77 SYZ253TAD51 Φ1340*951mm 1880*1586*670*450mm 66.9 0 107.7
78 SYZ253TAD57 Φ1340*951mm 1880*1586*670*450mm 66.9 0 107.7
79 SYZ253TAD63 Φ1330*920mm 1874*1576*739*450mm 69.8 0 149.4
80 SYZ253TAD68 Φ1368*951mm 1880*1586*670*580mm 69.8 212.5 149.4
81 SYZ253TAD75 Φ1330*920mm 1879*1576*739*450mm 73.1 235 186
82 SYZ253TAD97 φ1330*921mm 1879*1776*759*470mm 87 420.5 260.8
83 SYZ25ABD820 Φ1330*920mm 1874*1586*670*450mm 76.6 234 228.6
84 SYZ338TAD110 Φ1465*1120mm 2244*1919*791*511mm 98.4 0 329
85 SYZ338TAD110-D Φ822*1120mm 2255*1920*820mm 88.8 0 215
86 SYZ338TAD1200-D Φ822*1170mm 2350*2220*1133mm 117.3 0 409.6
87 SYZ338TAD123-D Φ1*1170mm 2344*2220*818mm 105.6 316.5
88 TZ12V138AZLD Φ1350*921mm 1885*1625*625mm 60.2 198.5 164.1
89 TZ6135BZD φ800*606mm 1270*956*496*336mm 22.2 0 35.6
90 WL-6114(180KW) Φ790*581mm 1175*956*470mm 27.8 53.6
91 WY4100 φ470*344mm 707*606*199mm 6.8
