WEICHAI Generator Radiators Suppliers

Home / Products / By Brand / WEICHAI Generator Radiator
By Brand
WEICHAI Generator Radiator

WEICHAI Generator Radiators Manufacturers

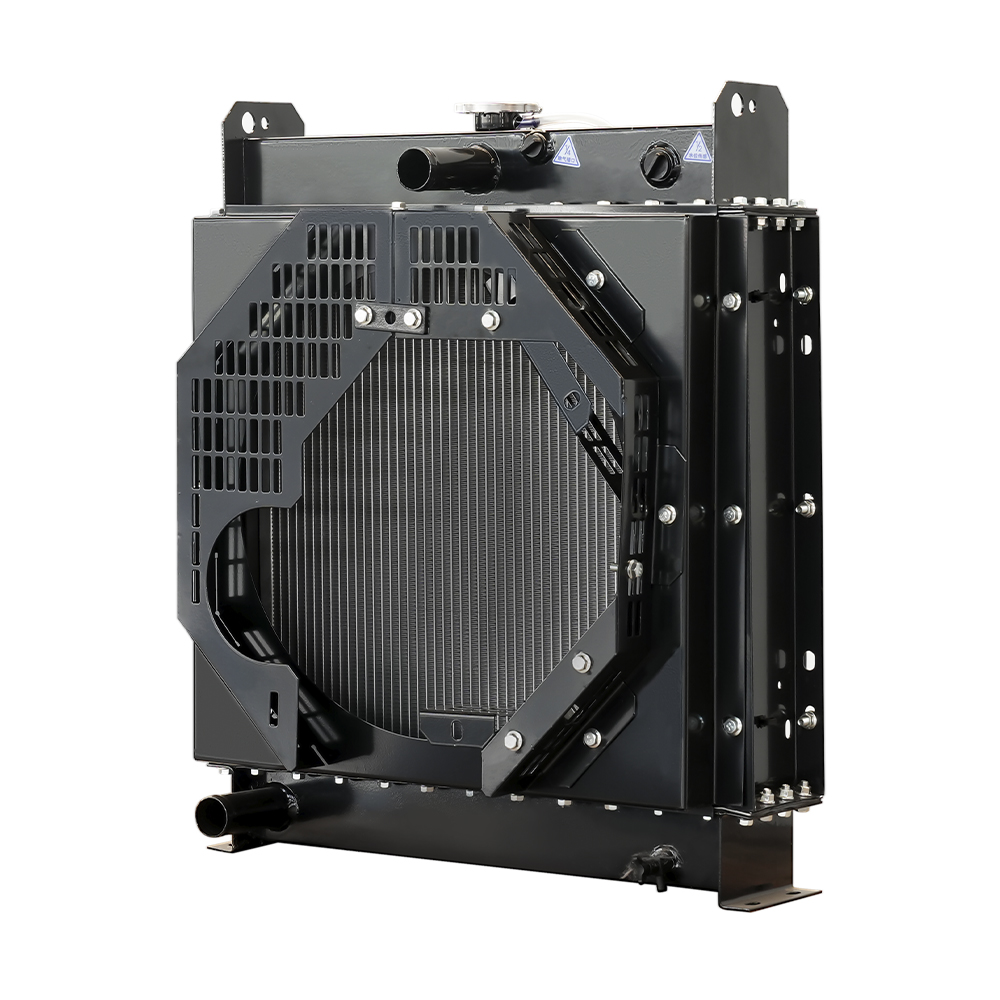

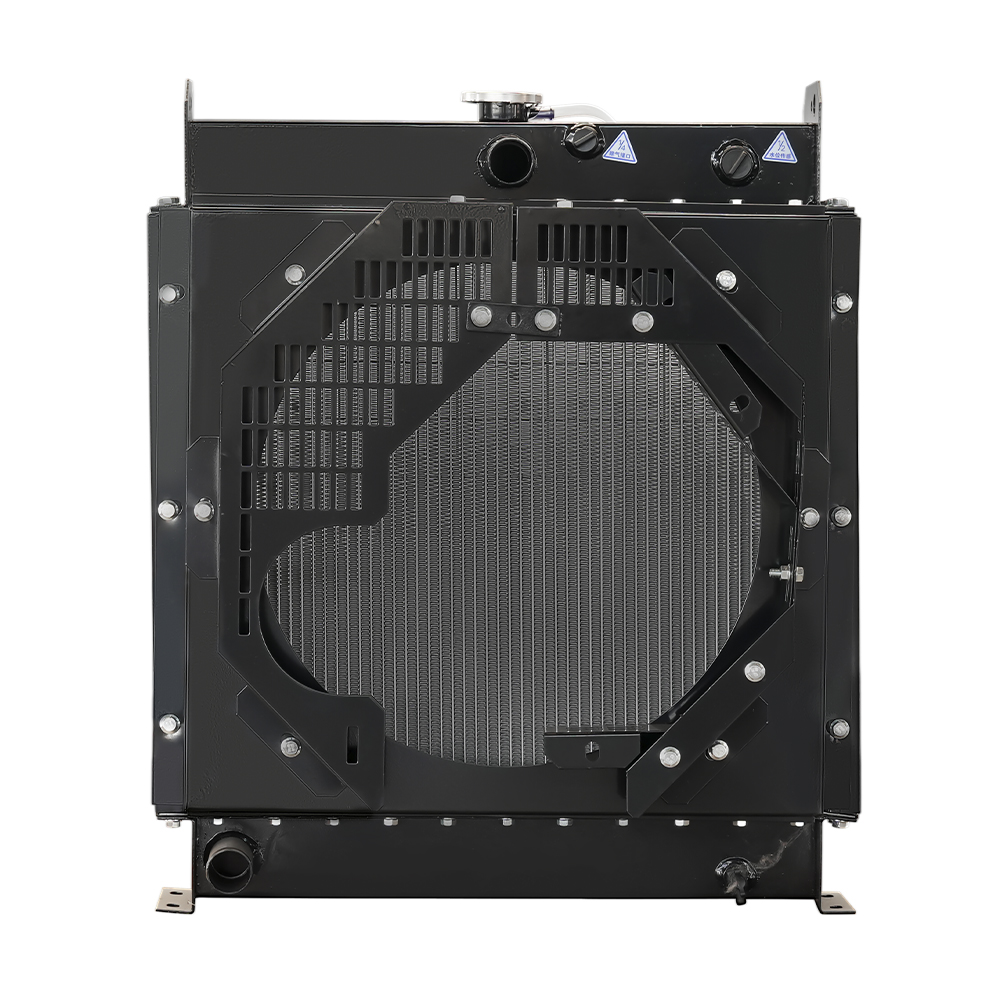

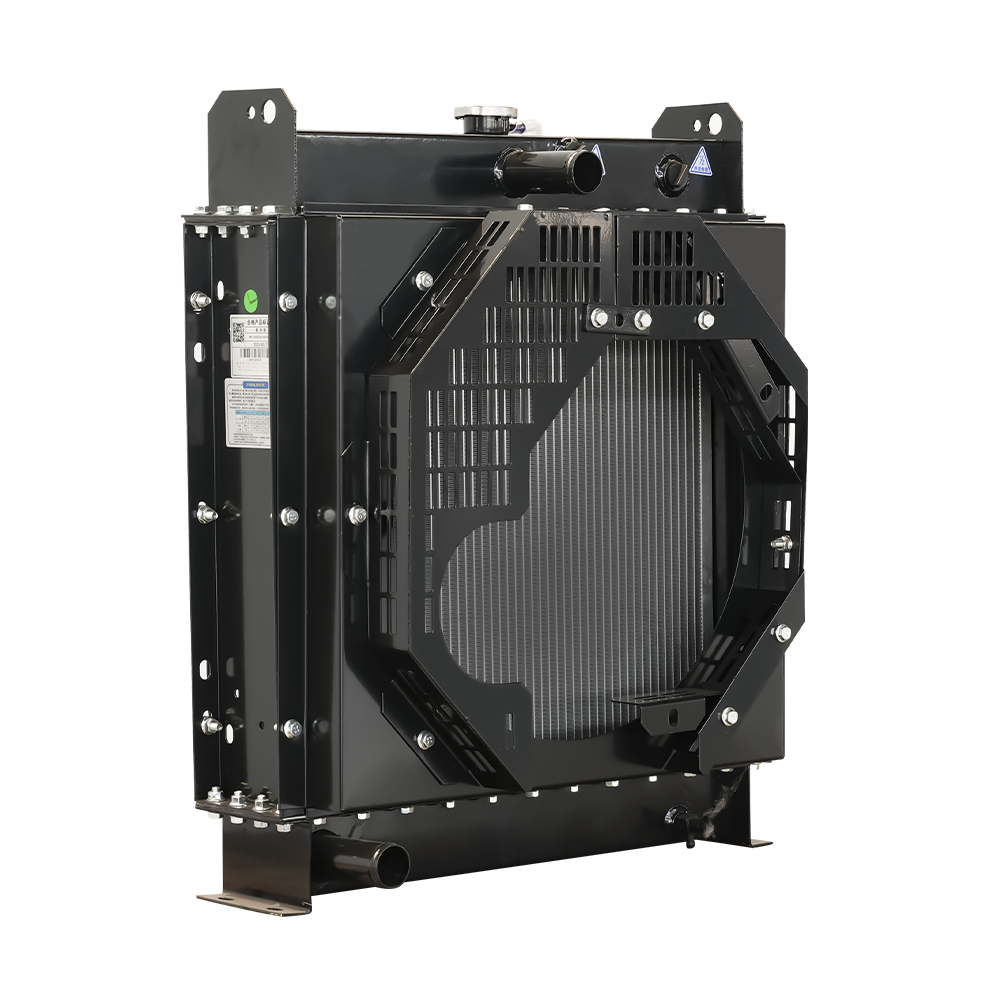

Engineered for WEICHAI diesel engines, this radiator combines high airflow design with durable materials for long-lasting performance. It maintains optimal operating temperatures even under extended high-load conditions, reducing the risk of engine overheating and increasing service life.

 No. Model
Installation Dimensions
Diameter*Center Height		 Radiator Dimensions
Height*Width*Thickness		 Water
Capacity
（L）		 Weight
（KG）		 Heat
Dissipation
Area
（M²）
1 1001582771-1 φ690*473mm 1006*800*466*400mm 15.8 0 54.8
2 1003004768-1 All-aluminum Φ520*389mm 876*700*462*282mm 10.8 0 34.5
3 WD618B Φ640*455mm 1005*735*410410mm 21 0 37.3
4 WP10D200E200 Φ800*581mm 1206*1003*599*380mm 30.8 0 32.7
5 WP10D200E300NG Φ800*581mm 1205*1056*599mm 35.8 74.5
6 WP10D238E200 Φ800*581mm 1206*1003*599*379mm 30.8 68 32.7
7 WP10D264E200 Φ800*581mm 1206*1003*599*380mm 30.8 74 32.7
8 WP10D288E200 Φ800*581mm 1206*1003*599*380mm 31.6 0 40.9
9 WP10D320E200 Φ790*646mm 1335*1005*530380mm 32.2 86 49
10 WP10G360E341 φ790*686mm 1375*1006*459*379mm 36.7 0 47
11 WP12D315E10 Φ880*686mm 1375*1006*499mm 36.7 88 47
12 WP12D317E200 Φ599*880mm 1335*1006*465mm 32 74 49
13 WP12D337E20 Φ890*756mm 1520*1056*491*379mm 37.6 0 56.5
14 WP12D353E200 Φ880*599mm 1335*1006*529*379mm 39.5 84 50
15 WP13D317E300NG-D Φ930*730mm 1465*1365*1190mm 82.3 0 10.1
16 WP13D385E200 Φ910*686mm 1375*1056*509*404mm 36.3 92 49.6
17 WP13D442E200 Φ910*686mm 1375*1056*506*404mm 37.7 100 68.8
18 WP13D490E310 Φ1010*711mm 1485*1256*515mm 44.7 135 91.3
19 WP13NG460E61-D motor drive 1575*1286*1135mm 48.4 361.5 152
20 WP2.3D25E200 Φ425*344mm 711*600*235*214mm 6.3 17.5 10.5
21 WP2.3D33E200 Φ475*344mm 711*600*235mm 6.3 18.5 9.3
22 WP2.3D40E200 Φ475*344mm 711*600*235mm 6.6 18.1 11.6
23 WP2.3D48E200 Φ475*374mm 821*616*403mm 6.5 26.2 12.2
24 WP2.3ND105E313 Φ475*369mm 935*666*435*295mm 11 0 19.4
25 WP2.3ND66E310 Φ475*297mm 932*666*385mm 11 0 19.4
26 WP3.2D36E310 φ480*359mm 741*666*235*185mm 7 0 12.3
27 WP3.2D44E310 φ480*359mm 741*666*285*235mm 7.3 0 15.3
28 WP3.2G61E316 φ480*359mm 741*646*235*185mm 6.7 0 14.5
29 WP3.2G75E440 φ510*375mm 738*626*274mm 7.4 19.1
30 WP3.6ND88E430 Φ565*414mm 842*766*486*336mm 13.1 27.4
31 WP3ND132E313 φ510*377mm 842*716*466*303mm 12.7 41.5 31.6
32 WP4.1D100E200 Φ520*414mm 842*716*486406mm 11.6 34 18.3
33 WP4.1D105E310 Φ575*414mm 842*716*413mm 12.2 28 25.3
34 WP4.1D113E200 Φ565*414mm 842*716*496*336mm 11.6 31.86 18.3
35 WP4.1D66E200 Φ520*414mm 842*716*305mm 12.2 24.94 38.6
36 WP4.1D66E310 φ575*414mm 842*716*436*336m 11.3 33.1 14.6
37 WP4.1D80E200 Φ520*414mm 842*716*355mm 11.6 23.7 18.3
38 WP4.1G100E311 φ570*414mm 842*716*380*255mm 11.6 0 18.3
39 WP4.1G140E301 Φ580*451mm 975*806*464*339mm 21.5 0 24.6
40 WP4.6ND125E430 Φ690*481mm 1035*806*594*404mm 22.4 37.1
41 WP4.6ND148E310 Φ690*489mm 995*815*488*390mm 14.8 0 37.1
42 WP4.6ND148E310 Φ690*489mm 992*816*488*308mm 15.6 0 46.2
43 WP4.6NG200E471 φ635*597mm 1092*766*396*326mm 13.1 0 25.4
44 WP4D100E200 Φ525*377mm 842*716*474*331mm 11.6 34.3 18.3
45 WP4D108E200 Φ630*432mm 932*766*475475mm 13.6 0 18.3
46 WP4D66E200 φ495*344mm 711*600*385*185mm 6.3 18.8 10.5
47 WP6D132E200(DHP06D0540) Φ630*511mm 1035*806*574*404mm 22.4 62 37.1
48 WP6D132E200 Φ635*597mm 1073*766*479399mm 12.7 42.4 21.6
49 WP6D152E200 Φ635*597mm 1092*766*399mm 12.7 0 21.6
50 WP6D167E200 Φ635*551mm 1030*766*400mm 12.6 38.4 19.9
51 WP6G190E330 φ700*559mm 1092*816*479*329mm 15 55.5 40.2
52 WP6G240E330 Φ790*541mm 1095*906*529*378mm 26.8 57.1
53 WP7D185E460 Φ730*577mm 1245*906*549mm 31.8 36
54 WP7D216E310 Φ730*511mm 1175*906*600*380mm 27.4 0 50.5
55 WP7D264E310 Φ730*511mm 1175*905*600*505mm 28.5 0 77.2
56 WP7D264E460 φ730*577mm 1245*906*549mm 35.6 77.2
57 WP7G300 φ730*581mm 1175*906*560*380mm 26.2 0 50.5
58 GK---58KW-WP2.3B80E201-00 Heat exchanger Heat exchanger Heat exchanger Heat exchanger
59 GK---WP10B325E200-0000201 Heat exchanger 1066*1010*400mm Heat exchanger 136 Heat exchanger
60 GK---WP10B435E200-0000201 Heat exchanger 1066*1010*400mm Heat exchanger Heat exchanger
61 GK---WP13B525E200-0000201 Heat exchanger 1086*1010*400mm Heat exchanger Heat exchanger
62 GK---WP13B600E220-0000201 Heat exchanger 1328*400*1010mm Heat exchanger Heat exchanger
63 GK---WP4.1B110E201-000020 Heat exchanger 240*555*183mm Heat exchanger 0 Heat exchanger
64 GK---WP4.6-000020100 Heat exchanger 920*665*405mm Heat exchanger 0 Heat exchanger
65 HGPBJ---169KW-WP6B230E200 Heat exchanger 1260*950*480mm Heat exchanger Heat exchanger
66 HGPBJ---WP10D200E200-1000 Heat exchanger 1260*950*480mm Heat exchanger Heat exchanger
67 HGPBJ---WP10D320E200-1000 Heat exchanger 1500*1200*500mm 70 2.4
68 HGPBJ---WP10D320E350-1000 Heat exchanger 1500*1200*500mm 70 2.4
69 HGPGK---100KW-WP4.1D100E2 Heat exchanger 261*555*183mm Heat exchanger 0 Heat exchanger
70 HGPGK---300KW-WP12D317E20 Heat exchanger Heat exchanger Heat exchanger 0 Heat exchanger
71 HGPGK---490KW-WP13B670E22 Heat exchanger Heat exchanger Heat exchanger 427 Heat exchanger
72 GC-WP13G530-DY-B-00023000 Φ885*734mm 1550*1294*686mm 42.6 103.6
Jiangsu Weichuang Radiator Manufacturing Co., Ltd.
About Weichuang

From our beginnings in generator set and radiator manufacturing in 2003, we've now expanded our business to over 30 countries with a workforce of more than 250 employees. As an established R&D and manufacturing enterprise for generator set radiators, OEM WEICHAI Generator Radiators Manufacturers and WEICHAI Generator Radiators Suppliers, operates two standardized production bases spanning over 60,000 square meters. With a technical team of 50+ core engineers, we have built a comprehensive industrial system covering R&D, production, and testing, achieving an annual production capacity of 150,000 units/sets. As WEICHAI Generator Radiators Factory, Professional advanced sheet metal radiator manufacturing equipment to ensure the quality of the products, high efficiency and delivery guarantee.

Message Feedback

News and Information

Industry Knowledge

Overview of WEICHAI Generator Radiators

WEICHAI generator radiators are essential components designed to maintain optimal operating temperatures for diesel engines. By efficiently dissipating heat, these radiators prevent engine overheating, improve performance, and extend the service life of the generator. Engineered for durability and high efficiency, they are suitable for continuous operation under high-load conditions, making them indispensable for industrial, commercial, and power generation applications.

About Jiangsu Weichuang Radiator Manufacturing Co., Ltd.

Founded in 2003, Jiangsu Weichuang Radiator Manufacturing Co., Ltd. began as a specialist in generator set and radiator production. Over the years, the company has expanded its business to over 30 countries and grown its workforce to more than 250 employees.

As a leading R&D and manufacturing enterprise for generator set radiators, Jiangsu Weichuang serves as both an OEM and supplier for WEICHAI generator radiators. The company operates two standardized production bases covering over 60,000 square meters and employs a technical team of 50+ core engineers. Its comprehensive industrial system encompasses R&D, production, and testing, achieving an annual production capacity of 150,000 units/sets.

Equipped with advanced sheet metal radiator manufacturing machinery, Jiangsu Weichuang ensures high-quality products, efficient production, and reliable delivery. As a professional WEICHAI generator radiators factory, it is dedicated to providing durable, high-performance radiators that meet the demanding requirements of modern engines.

Key Features of WEICHAI Generator Radiators

  • High-Airflow Design: Optimizes heat dissipation and ensures stable engine temperature under continuous operation.
  • Durable Materials: Constructed from corrosion-resistant metals to withstand long-term industrial use.
  • Precision Manufacturing: Produced with advanced sheet metal machinery to ensure consistent performance and reliability.
  • Compatibility: Specifically engineered for WEICHAI diesel engines, guaranteeing perfect fit and optimal efficiency.

Applications of WEICHAI Generator Radiators

WEICHAI generator radiators are widely used across diverse sectors due to their reliability and high performance. Typical applications include:

  • Industrial power generators for manufacturing plants
  • Backup generators for commercial buildings and hospitals
  • Remote or off-grid power generation solutions
  • Marine and construction equipment requiring reliable diesel power

Performance and Maintenance Advantages

WEICHAI generator radiators are designed to maximize engine efficiency and longevity. Their high thermal conductivity ensures quick heat transfer, while the corrosion-resistant materials extend service life. Regular maintenance is simplified due to standardized components, allowing for quick inspections and replacements when needed. Proper maintenance ensures continued high performance and prevents unexpected downtime.

Technical Specifications

Parameter Specification
Material Corrosion-resistant copper & aluminum
Cooling Capacity Up to 150,000 kCal/h
Compatible Engines WEICHAI diesel engines
Annual Production 150,000 units/sets

Conclusion

WEICHAI generator radiators from Jiangsu Weichuang combine advanced engineering, durable materials, and precise manufacturing to ensure optimal engine performance. Backed by decades of expertise and a comprehensive production system, these radiators provide reliable cooling solutions for a wide range of industrial and commercial applications, protecting engines, improving efficiency, and extending service life.
