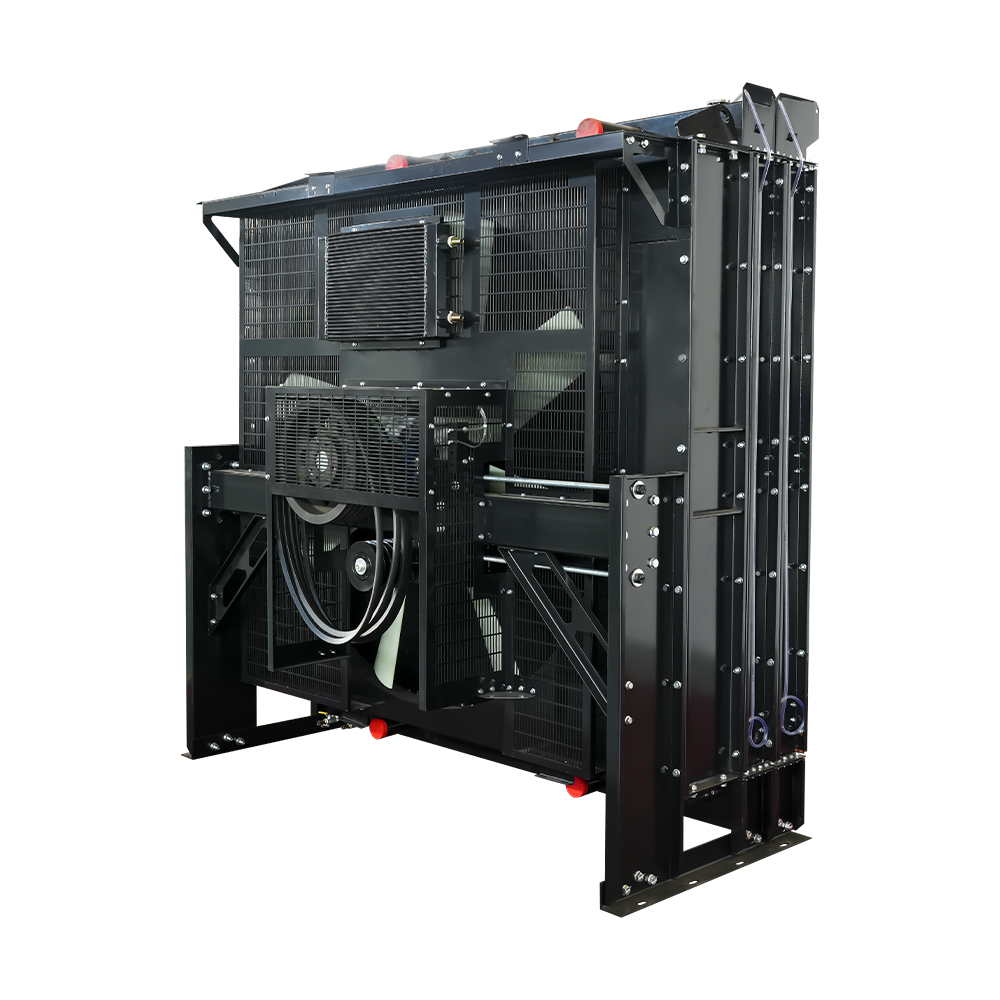

YUCHAI Generator Radiators Manufacturers

Sizing by Heat Dissipation Area (Not Just “kW”)

For YUCHAI generator radiators, the most practical sizing shortcut is to validate the radiator’s heat dissipation area against your real operating profile (continuous load, altitude, enclosure restriction, and ambient). Nameplate genset kW is a starting point, but the cooling package must cope with steady-state heat rejection plus transient spikes (step loads, fan cycling, and aftercooler interaction).

What I check before recommending a core

• Ambient design point (common industry baselines are 40°C, and harsher projects design around 50°C).
• Airflow availability: shroud coverage, fan tip clearance, and whether an enclosure is starving the inlet.
• Cooling circuit mix: radiator-only vs. radiator + CAC/aftercooler stack (stacked exchangers reduce effective airflow).
• Fouling risk (dust, cottonwood, oil mist): higher fin density is not always better if you can’t keep it clean.

If you want a fast path, send me your ambient, enclosure type, and duty cycle—then I’ll map you to a cooling margin that avoids nuisance overheating without overspending.

Core Material Tradeoffs: Aluminum vs. Copper/Brass in Real Service

Many buyers assume “copper cools better” and stop there. In practice, total performance depends on tube geometry, fin bonding, airflow, and maintenance access. Material choice is more about repair strategy, weight, and corrosion environment than a simple conductivity comparison.

When aluminum cores win

• Lower mass improves mounting stress and vibration tolerance (useful on mobile or skid systems).
• Modern brazed aluminum can deliver high fin efficiency with consistent manufacturing repeatability.
• With the right coating, aluminum handles many industrial atmospheres well—especially when cleaning routines are strong.

When copper/brass is still the practical choice

• Field repairability (rodding, solder repairs, local shops) can reduce downtime in remote regions.
• Some operators prefer established copper/brass service networks for mission-critical standby fleets.

On my side, I treat material as a lifecycle decision: the “best” radiator is the one you can keep performing at spec with your maintenance realities.

Fan, Shroud, and Static Pressure: The Hidden 20% That Decides Overheating

A strong core can still overheat if the air system is wrong. Generator packages often run in enclosures where the radiator sees higher static pressure and recirculation risk. The most overlooked items are shroud coverage and fan-to-core distance, especially when retrofitting a replacement radiator into an existing Yuchai genset.

Practical checks during replacement

• Ensure the shroud pulls air through the entire fin face (dead zones near corners are common).
• Confirm fan rotation and blade pitch match the original airflow direction and design intent.
• Seal bypass paths (gaps around the frame) so air doesn’t short-circuit around the core.
• If you added a denser fin core, budget for higher static pressure and verify the fan can handle it.

If you’re comparing options on YUCHAI generator radiator replacements, I recommend treating airflow parts as a matched set—core + fan + shroud—because that’s where many “same dimensions” swaps fail.

Coolant Chemistry and Cavitation: Protecting the Core and Pump

Radiator life is heavily influenced by coolant control, not just metal thickness. The biggest killers I see are wrong inhibitor package, hard water scaling, and localized cavitation near pump zones or high-velocity passages. Even a premium core can lose capacity quickly if scaling coats the tubes.

Operator habits that actually extend service life

• Use treated or deionized water when mixing coolant; avoid topping off with unknown hard water sources.
• Maintain inhibitor levels (test strips or lab checks) instead of “set-and-forget” refills.
• Bleed air properly after service—air pockets reduce heat transfer and accelerate corrosion at hotspots.
• Watch for chronic low coolant level: repeated partial fill-ups can concentrate minerals and worsen scaling.

This is one reason I like to confirm your coolant plan before shipping: a properly maintained cooling circuit can keep a Yuchai radiator performing for years longer.

Buyer Checklist: What to Verify Before You Place the Order

To avoid fitment surprises, treat a radiator purchase like a specification match, not a photo match. Below is the fastest checklist I use when validating YUCHAI generator radiators for replacement or OEM-equivalent supply.

If you share these checkpoints, I can usually confirm the right configuration quickly—and I’ll keep the recommendation focused on measurable outcomes: stable coolant temperature, lower downtime, and simpler installation.
