YUCHAI Generator Radiator

Home / Products / By Brand / YUCHAI Generator Radiator
By Brand
YUCHAI Generator Radiator

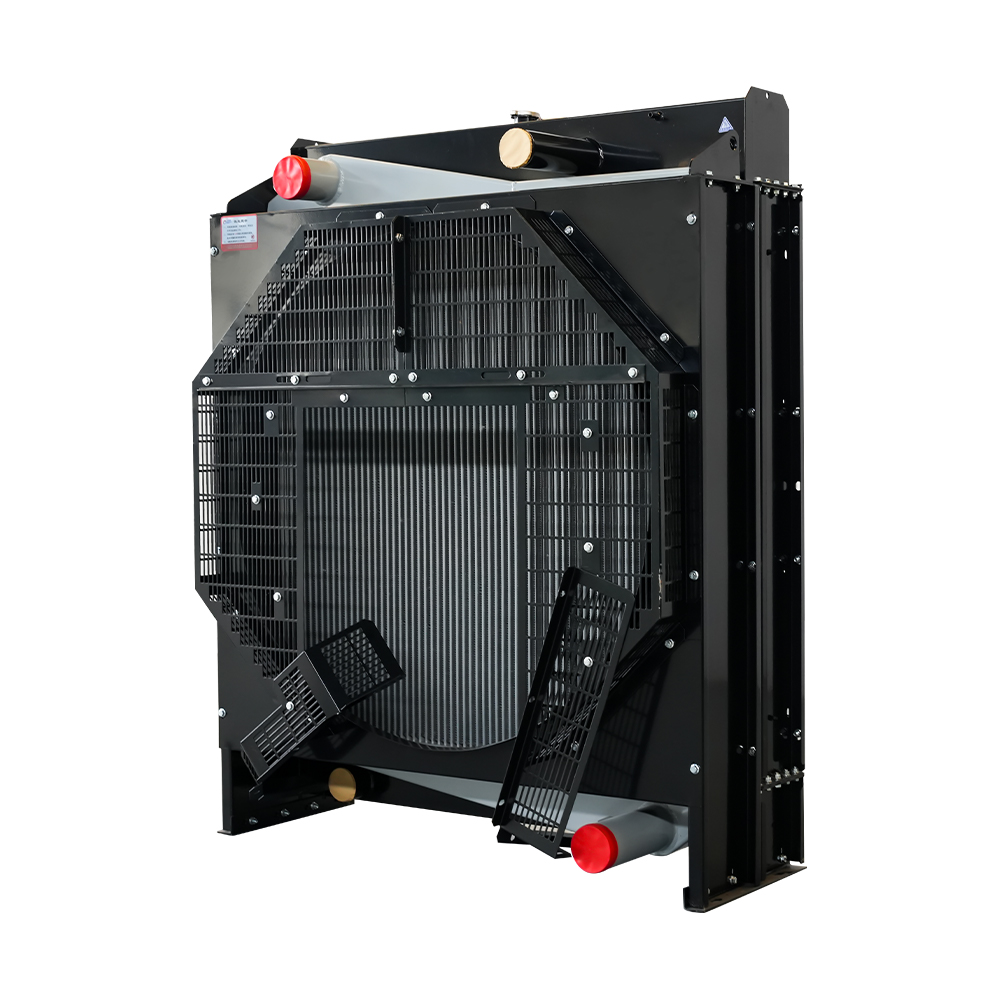

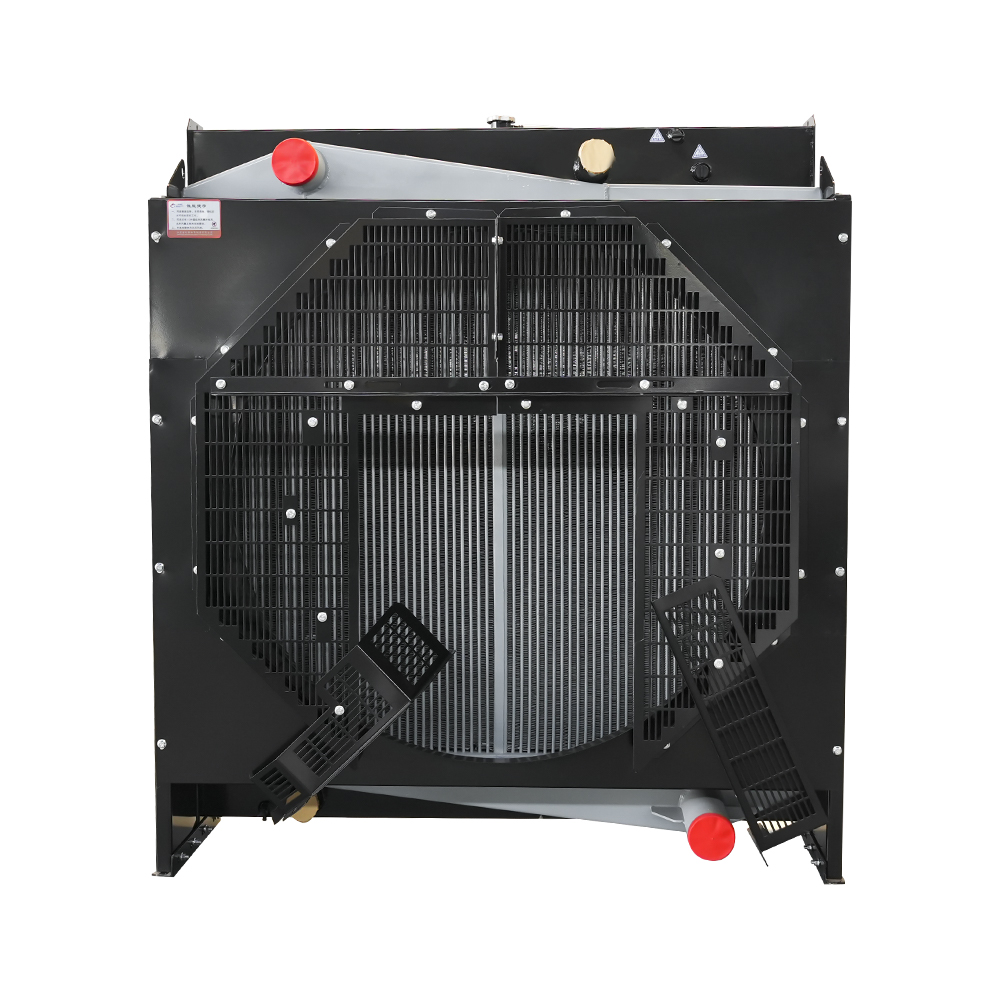

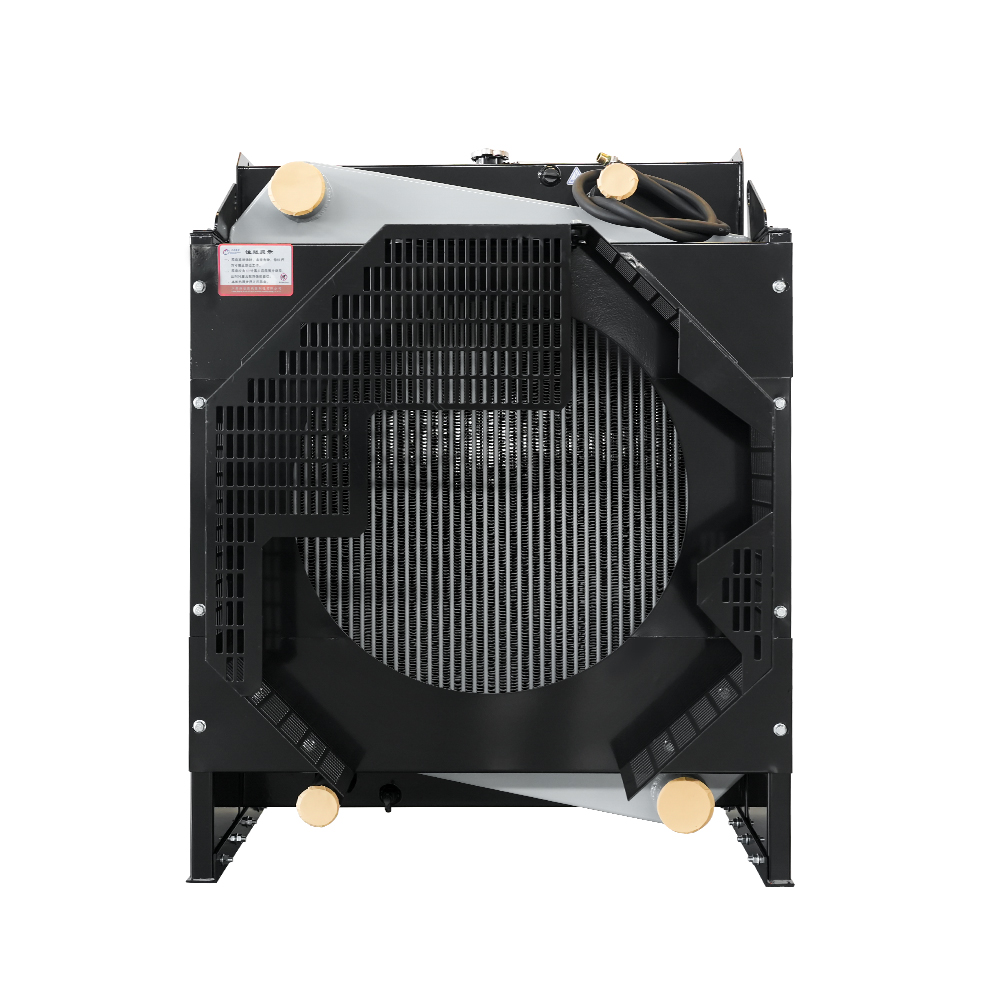

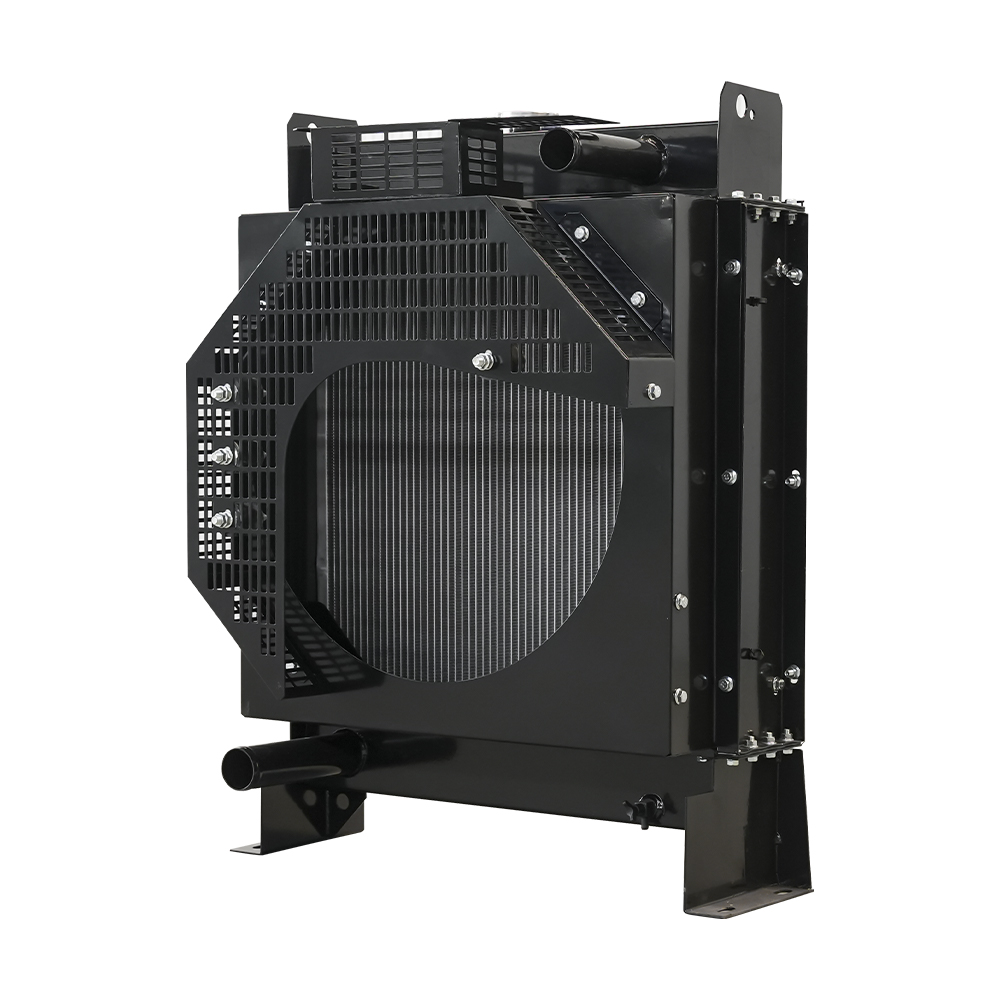

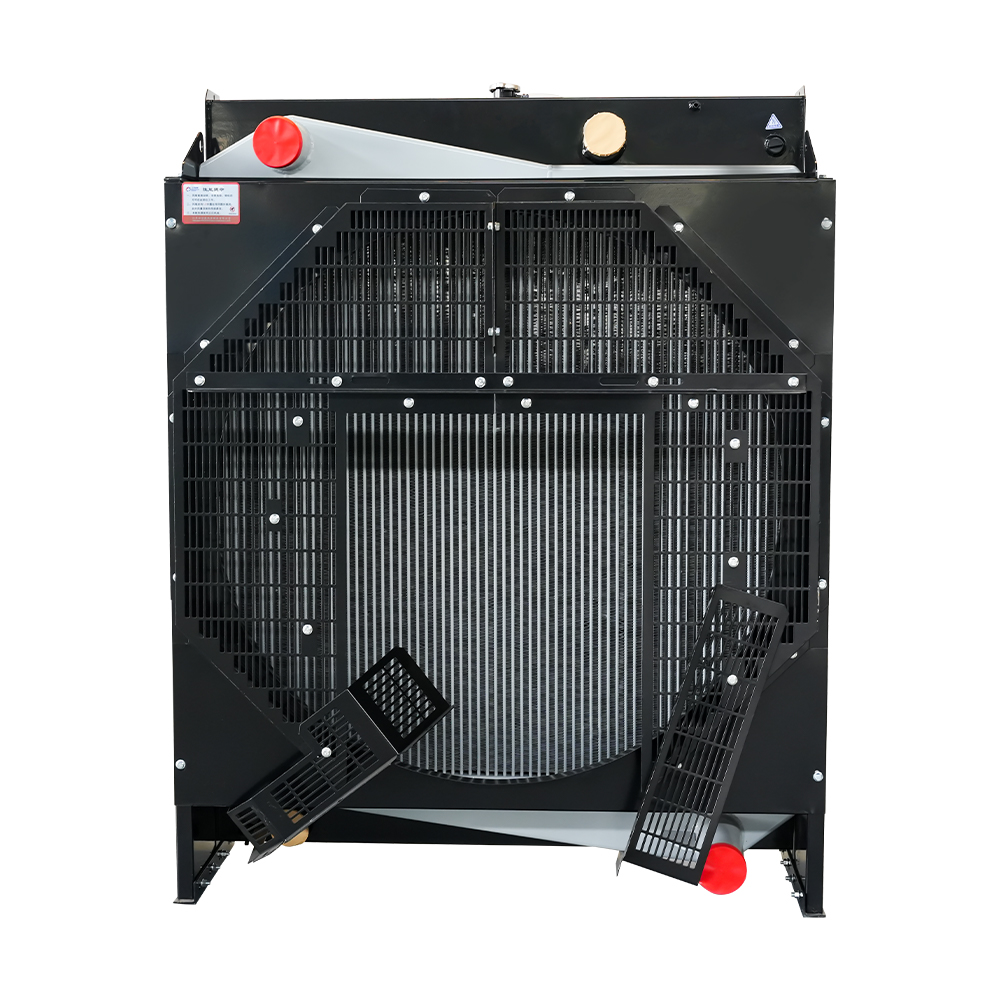

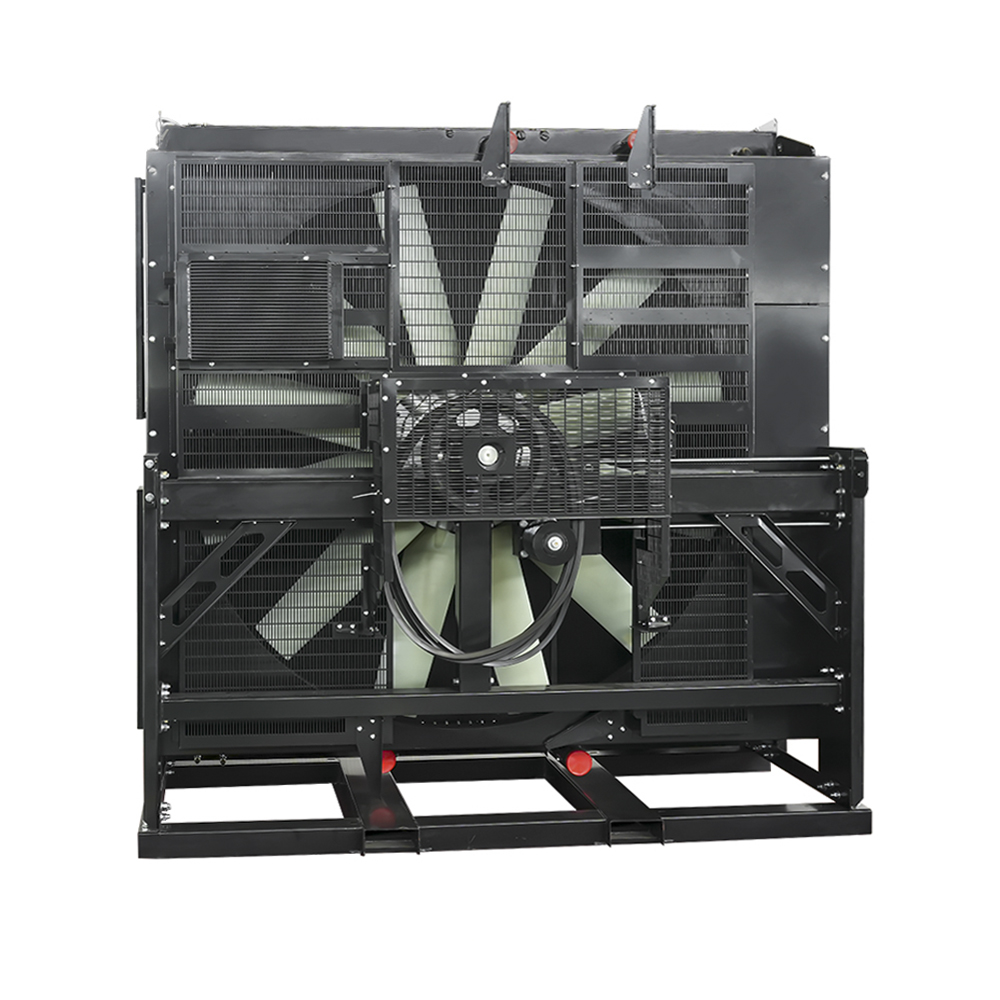

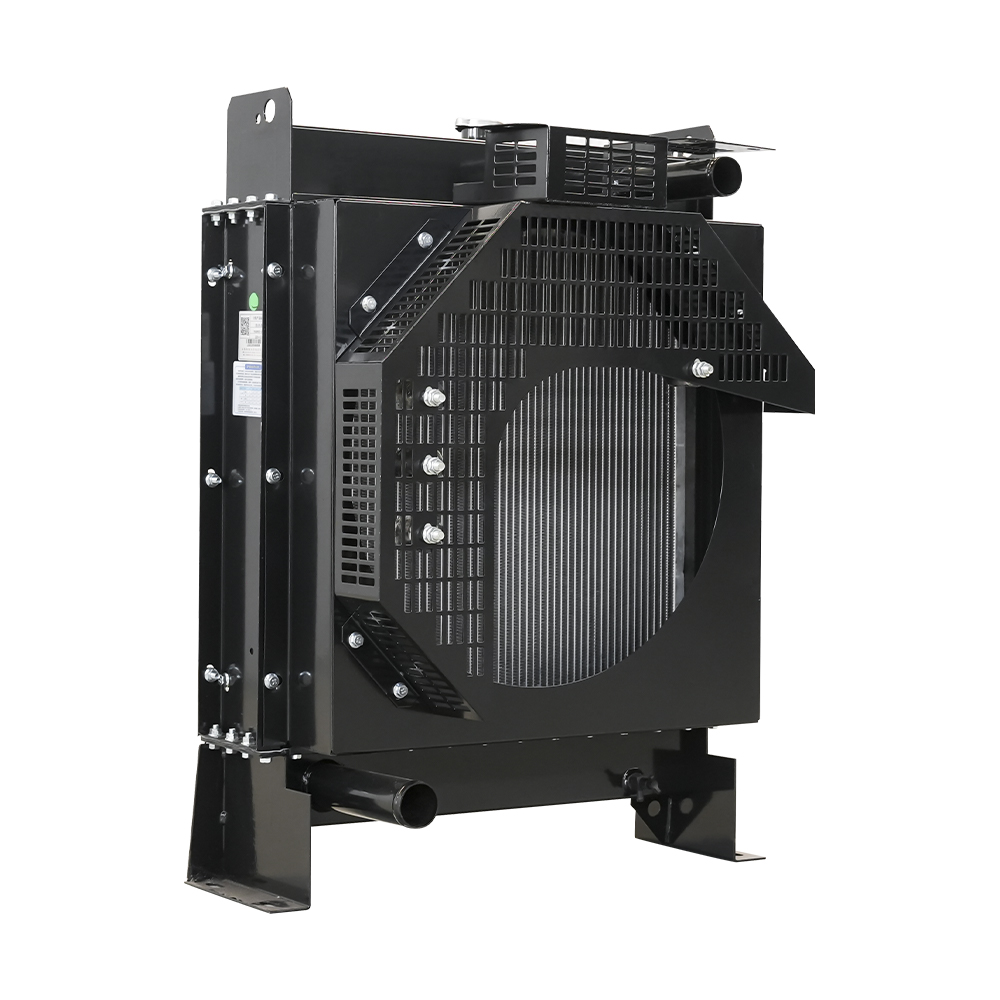

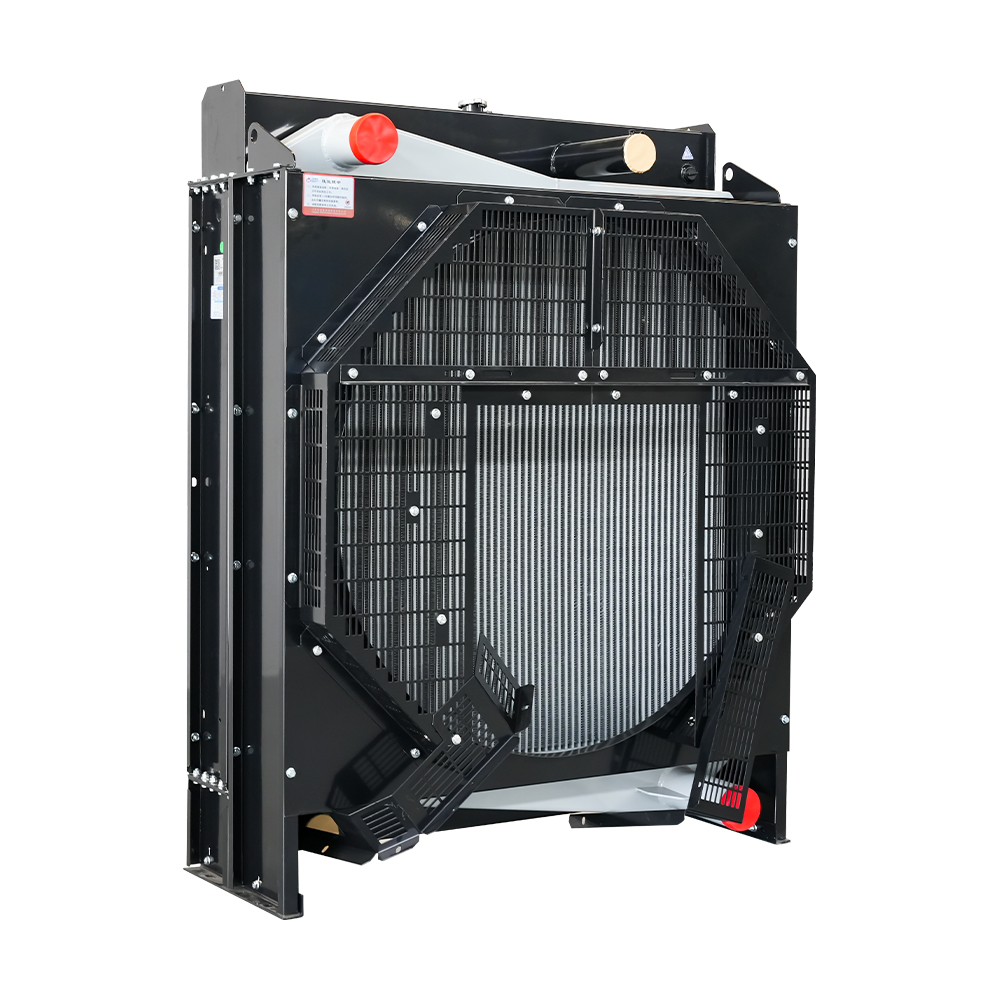

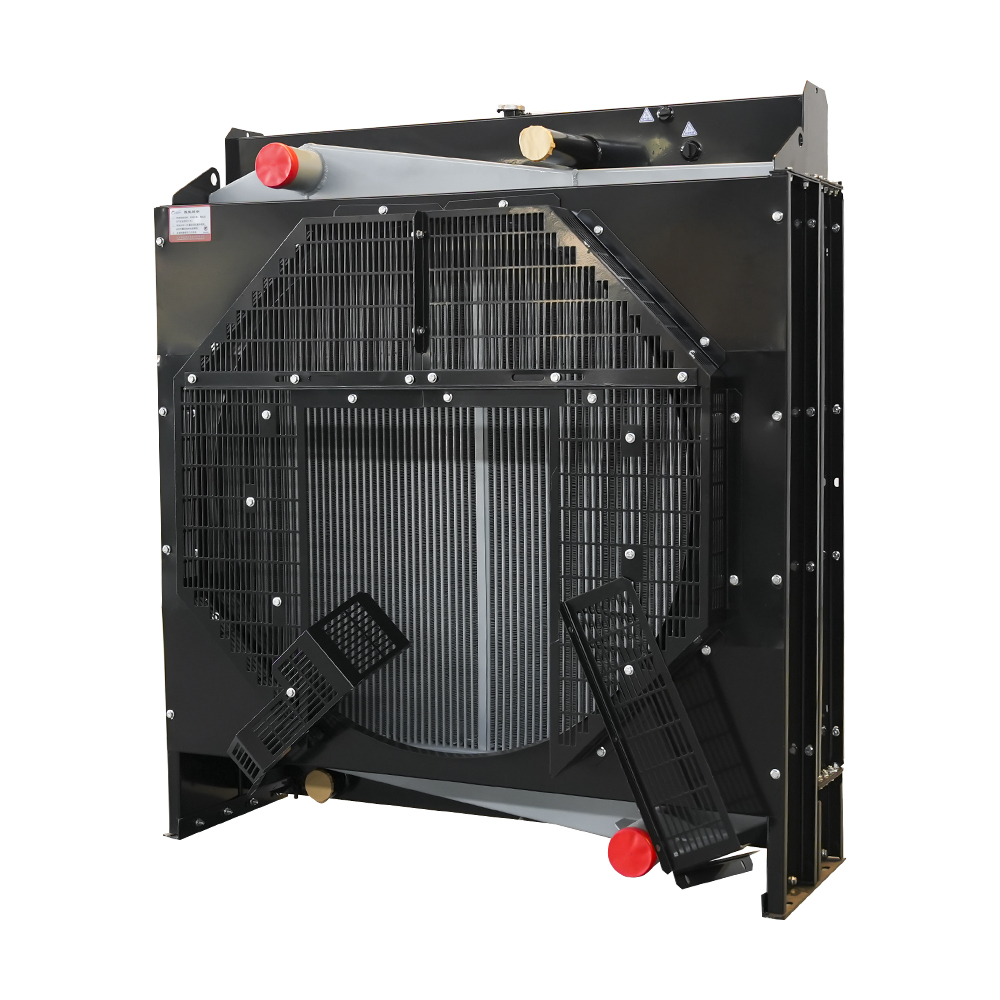

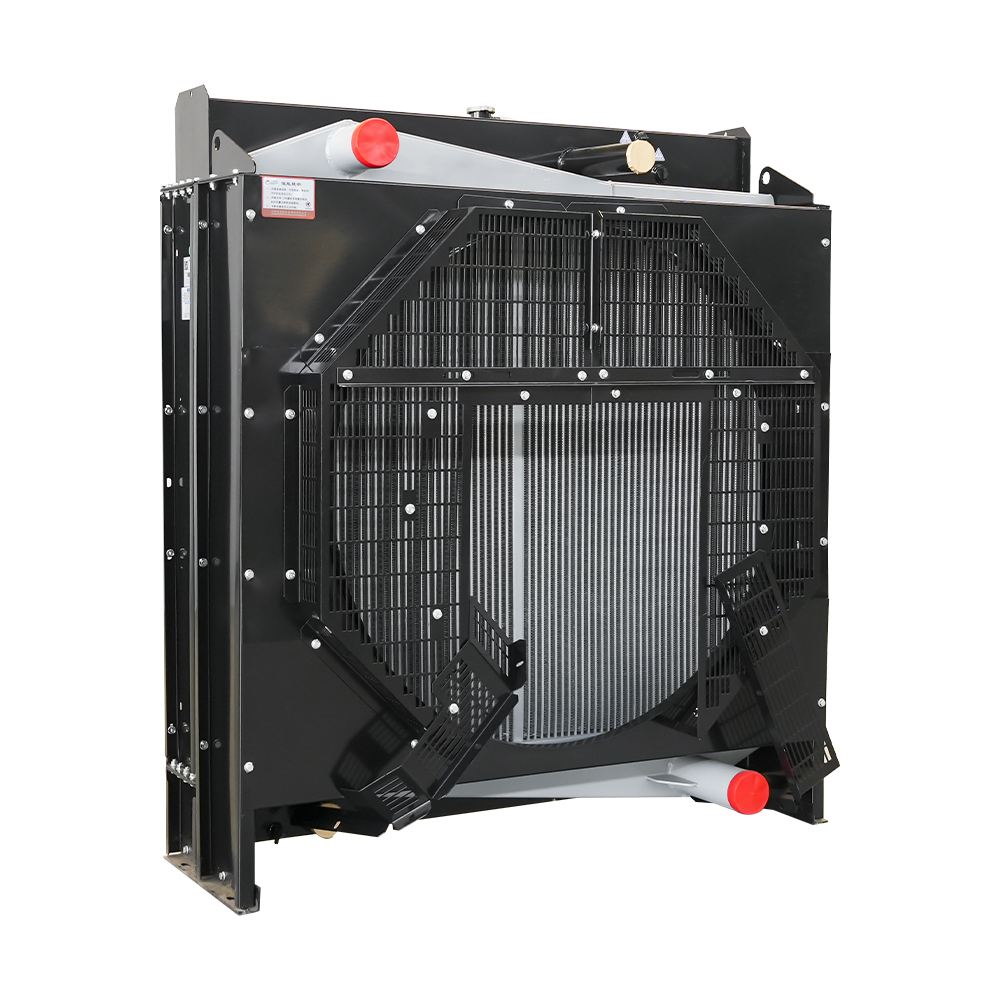

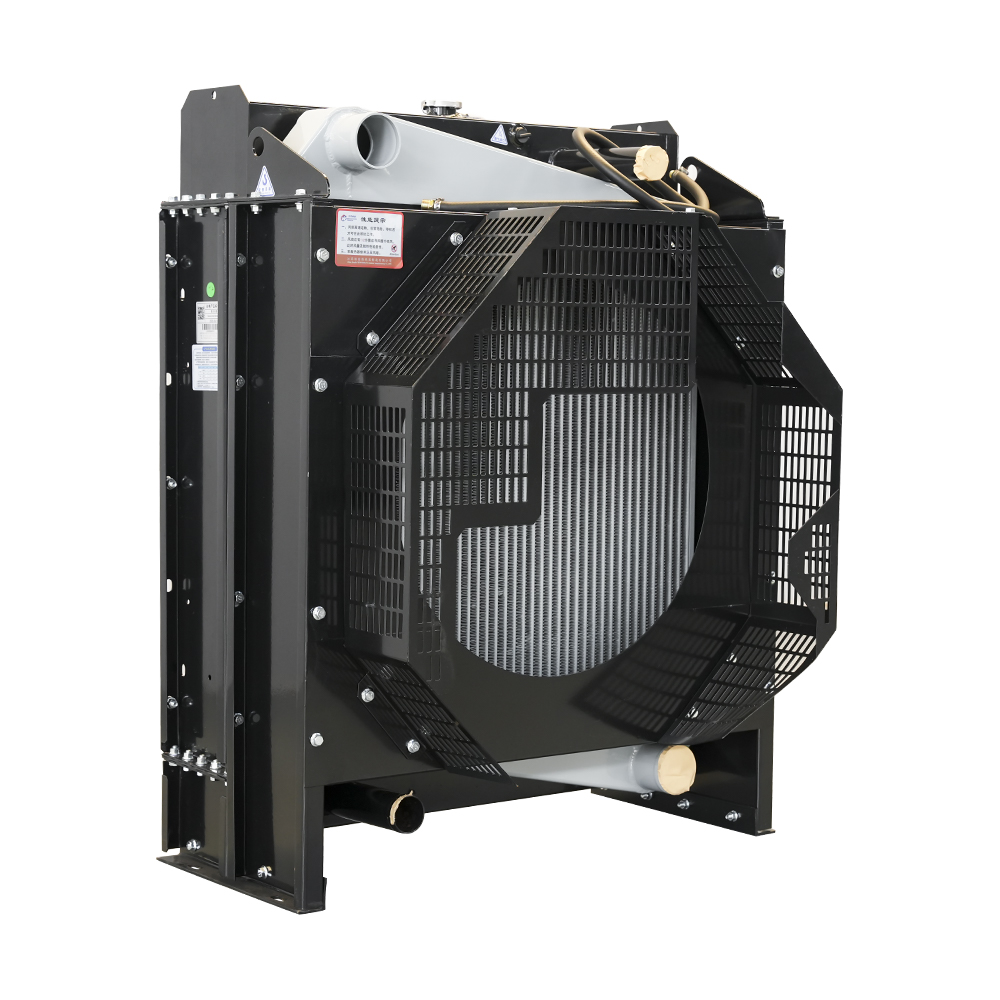

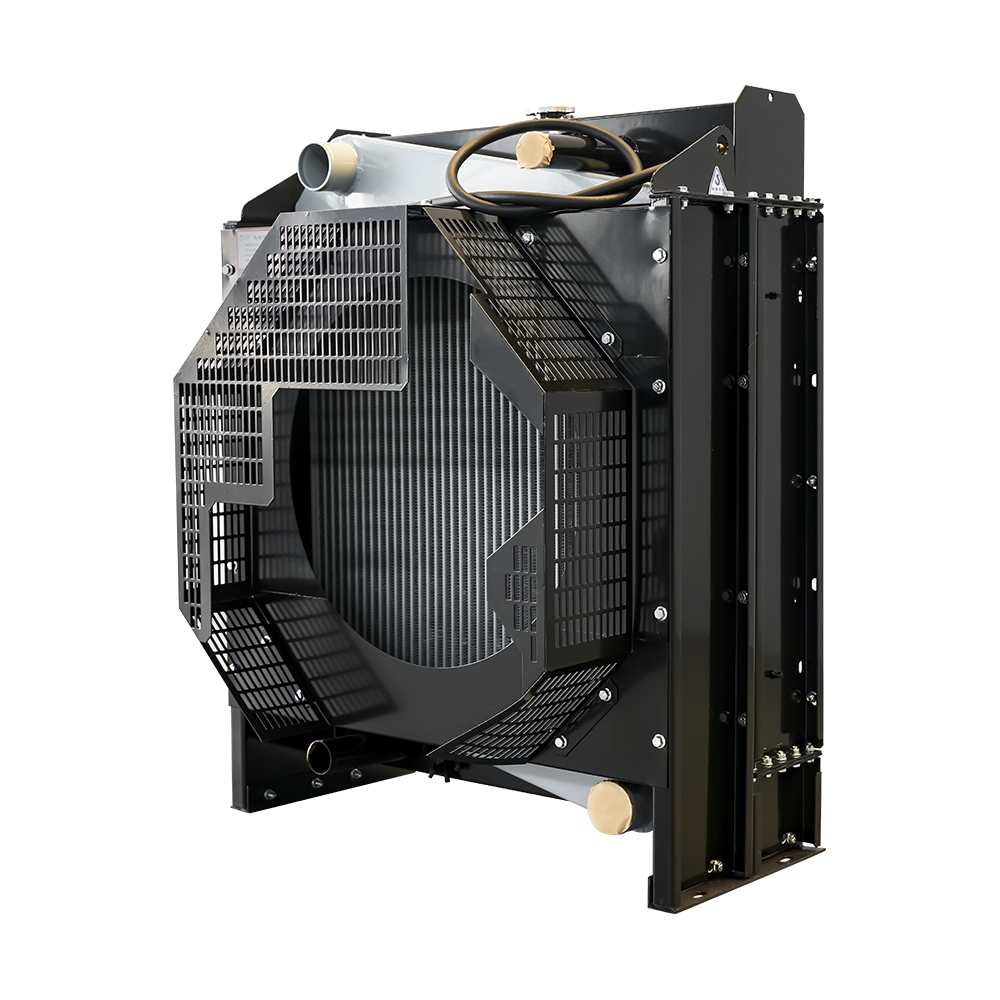

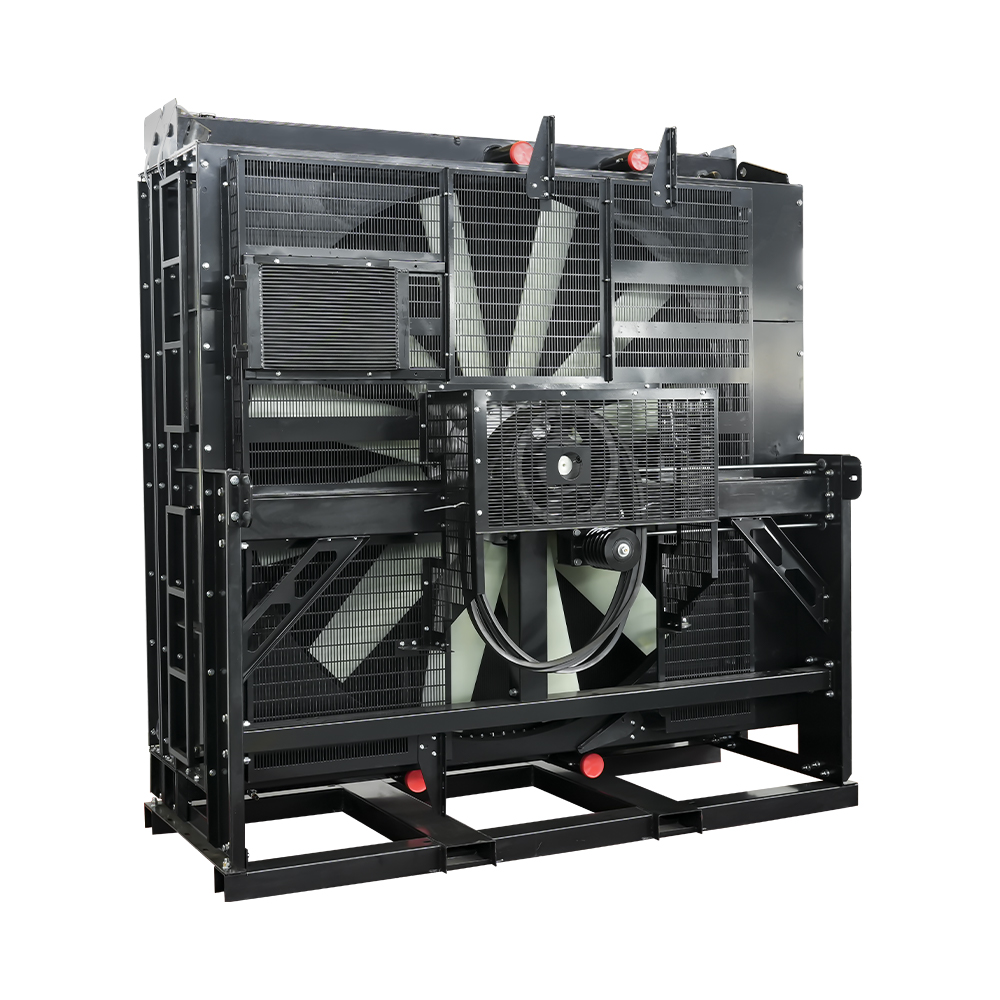

Designed specifically for YUCHAI diesel generator sets, this radiator features a high-performance aluminum or copper core with anti-corrosion coating, delivering efficient heat dissipation in demanding industrial environments. Engineered for durability and consistent cooling, it supports reliable engine performance in continuous and standby applications. Ideal for power stations, factories, and construction projects, the YUCHAI radiator ensures optimal temperature control and reduced maintenance downtime.

No. Model Installation Dimensions
Diameter* Center Height		 Radiator Dimensions
Height*Width*Thickness		 Water
Capacity
（L）		 Weight
（KG）		 Heat
Dissipation
Area
（M²）
1 15MD01 Φ990*731mm 1465*1306*680*405mm 54.9 140.8
5 AJY1000KW-D Φ1820*1140mm 2495*2119*1714mm 224 0 601.2
6 AJY1050KW-D Φ1820*1214mm 2445*2269*1916mm 296.2 0 702.2
28 R7500-SF4-50 Aluminum Φ400*305mm 610*510*306*155mm 5 0 13.2
29 WC-AJY1000kw-DJ-1 Φ1820*1140mm 2520*2220*1710*686mm 248 0 652
30 WC-AJY1050KW-DJ-1 Φ1820*1214mm 2443*2355*1756*737mm 308.8 0 363.3
31 WC-AJY500kw-1 Φ1*1mm 2520*2220*775*406mm 123.3 750 309
34 YC12VC1680L(CV380)-P Pulley drive 2200*2119*1160*686mm 214.6 0 227.2
36 YC12VC2070L(CV580)-P Φ1630*1120mm 2194*2119*1192mm 219.4 712 276.2
38 YC12VC2270(CV730)-D Φ1*1270mm 2500*2175*1486mm 246.8 351
39 YC12VC2270(CV780)-P Φ1740*1220mm 2394*2219*1192mm 237 755.5 276.5
42 YC12VC2510(CV880)-P φ2020*1350mm 2674*2619*1205mm 288.3 886 372.9
44 YC12VC2700(CV980)-P Φ2020*1350mm 2674*2619*1205mm 291.7 890 464.5
46 YC12VC3000-D30-P Φ2150*1420mm 2864*2741*1359mm 350.7 0 441.7
48 YC12VTD1350-D30 Φ1740*1150mm 2274*2115*884mm 212 431.5 238.5
49 YC12VTD1500-D30 Φ1740*1150mm 2274*2115*884mm 127.7 431.5 481.4
51 YC12VTD1500-D30-D Motor drive 2174*1870*1023mm 195 244
52 YC12VTD1680-D30 Φ1740*1150mm 2274*2115*884mm 212 440 238.5
54 YC12VTD1830-D40 Φ1740*1150mm 2274*2115*884*684mm 215.4 444.5 276.9
56 YC12VTD1830-D40-D Four motors 2574*2419*1455mm 267.8 445 824.7
57 YC12VTD2000-D30 Φ1740*1120mm 2434*2319*934mm 290.4 560.5 431.3
61 YC12VTD2000-D40 Φ1740*1150mm 2479*2615*934mm 324.9 1100 930.4
62 YC16VC3000-D31-D Motor drive 2869*2675*1613mm 370 0 441.7
63 YC16VC3000-D31-P Φ2150*1370mm 2764*2779*1326mm 375.4 1300 837.3
68 YC16VC3300-D31-P Φ2150*1420mm 2864*2719*1326mm 381.1 1320 680.9
73 YC16VC4000-D31-P Φ2150*1420mm 2869*2719*1326*1148mm 362 1313.5 648.9
76 YC16VC4200-D30-P Φ2150*1420mm 2864*2719*1359mm 361.9 648.9
78 YC16VC4900-D30-D Motor drive 3572*3019*1772mm 432.2 3365 730.9
81 YC16VTD2270-D30 φ1740*1120mm 2434*2219*1024*734mm 271.1 540.5 351
82 YC16VTD2470-D40 Φ1740*1120mm 2644*2615*1004*734mm 339.6 520 570.7
83 YC16VTD2510-D30 Φ1740*1120mm 2435*2220*1025*905mm 283.8 540.5 431.3
88 YC16VTD2700-D30 Φ1740*1120mm 2434*2219*1024*734mm 303.6 570 580.7
89 YC2115ZD Φ480*479mm 912*636*275mm 9.5 23.5 9.4
91 YC4108 φ502*384mm 791*616*328mm 6.5 0 12.2
92 YC4A100Z-D20 Φ510*389mm 792*666*345*310mm 10.3 24.5 12.3
94 YC4A100Z-D25 φ520*454mm 882*766*340*215mm 13.1 29.5 27.4
98 YC4A140L-D20 Φ510*441mm 975*806*454*338mm 21 55 19.7
103 YC4A140L-D25 Φ580*481mm 975*806*405mm 21 54 19.7
106 YC4A140L-D25-D Motor drive 975*860*780mm 22.2 0 34.1
107 YC4A155L-D30 φ535*439mm 932*816*435*320mm 13.8 44.5 24.6
109 YC4A165-D30 Φ530*526mm 1040*806*494*380mm 21.2 58.5 21.4
111 YC4A180L-D20 Φ530*441mm 975*806*524*460mm 21.5 54 24.6
116 YC4A190-D30 Φ530*544mm 1032*816*450*400mm 21.7 59 26.8
119 YC4B85 Φ520*519mm 911*676*303*260mm 6.4 24 11.2
121 YC4D105-D34 Φ525*464mm 882*765*305*265mm 12.2 26.5 15.8
124 YC4D120-D31 Φ530*480mm 883*806*408mm 22.9 29 18.1
125 YC4D120Z-B21 Φ450*399mm 842*716*325*205mm 12.3 29.5 27.5
126 YC4D140-D31(D73PD0) Φ580*480mm 975*806*465*410mm 21 53.5 19.7
128 YC4D155-D31 Φ530*480mm 883*806*440*405mm 12 47 21.3
131 YC4D60-D25 Φ510*454mm 882*640*368*255mm 6.5 26 11.6
132 YC4D60-D25 Φ510*454mm 882*616*368mm 6.5 25.5 11.6
133 YC4D80Z-D20(D806G) Φ510*401mm 791*616*325*205mm 6.5 12.2
134 YC4D85Z Φ530*384mm 791*616*328248mm 6.5 26 12.2
136 YC4D90-B20 Φ450*414mm 820*615*328*260mm 6.8 22 15.9
138 YC4D90-D25 Φ530*454mm 882*616*365mm 9.8 25.5 15.3
142 YC4D90-D34(D73VD) Φ500*435mm 845*715*415*365mm 11.6 36 19
145 YC4D90Z Φ510*505mm 913*686*401329mm 10.8 24.5 35.5
147 YC4D90Z-D21 Φ510*474mm 882*766*400*250mm 13.1 27.4
148 YC6A230L Φ710*581mm 1140*856*499*339mm 26.6 60 24.8
151 YC6A245L Φ700*581mm 1165*906*594mm 31.3 67.5 26.5
156 YC6A260 Φ800*570mm 1198*950*516516mm 27.9 83 46.8
157 YC6A275L Φ700*581mm 1165*906*594*379mm 33.9 73 57.1
158 YC6B135Z Φ660*564mm 1032*818*360*220mm 13.8 0 19.9
162 YC6B140-D2 Φ660*564mm 1025*790*290mm 11.9 0 21.1
163 YC6B140Z Φ660*564mm 1032*750*285mm 13.8 0 19.9
164 YC6B165Z-B20 Φ590*564mm 1032*766*360*220mm 14 24.6
166 YC6B180L Φ665*601mm 1135*856*479mm 26.6 59.5 24.8
170 YC6B180L-B20 Φ665*621mm 1135*850*479*429mm 26.6 60 24.6
171 YC6B180L-D20(B8T) Φ665*621mm 1135*856*459mm 26.6 24.6
174 YC6B205L Φ660*607mm 1140*927*559*379mm 28.3 62.5 26.8
177 YC6B205L-D20(B8T) Φ660*607mm 1135*906*539*379mm 28.3 26.8
179 YC6B205L-D20(B8T)-D Motor drive 1298*956*791mm 27.4 146 56.9
180 YC6C1020(1070)L-D31 Φ1350*1006mm 1870*1576*760*450mm 81.4 220 195.2
182 YC6C1020L-D20 Φ1350*911mm 1844*1556*715*610mm 64.8 0 153.4
186 YC6C1220L-D31 Φ1470*1035mm 2164*1676*782641mm 72.2 235.5 197.2
189 YC6C1320L-D31 Φ1470*1035mm 2169*1676*780*470mm 76.5 320 239.7
192 YC6C1520L Φ1470*1036mm 2165*1776*782*635mm 81.1 272.5 252.2
195 YC6C1660-D30 Φ1460*1075mm 2010*2119*676*511mm 80.5 335 265.6
199 YC6C1660-D30-D Φ822*1120mm 2245*1920*820mm 88.8 390 215
200 YC6C1660-D31(2021V01) Φ1470*1020mm 2155*2170*905*760mm 97.1 388.5 307.8
202 YC6C750N-D30-CNW20-D Four motors 2280*2091*1010*711mm 211 0 283.8
203 YC6FD1220-D30 φ1280*890mm 1734*1869*730*535mm 92.5 288 237.2
204 YC6G245L Φ720*601mm 1135*955*440mm 30 63 28.1
205 YC6J180 Φ780*568mm 1085*930*407mm 16.1 43
206 YC6K420N-D30 φ990*731mm 1470*1256*680*435mm 52.7 0 136
207 YC6K500L Φ990*715mm 1470*1156*680520mm 42.9 113.5 57.3
213 YC6K600L-D30 Φ990*715mm 1470*1156*680520mm 44.4 116 79.5
217 YC6K780-D30 Φ1172*806mm 1615*1476*750*450mm 60.7 171.5 145.9
219 YC6L330-D Motor drive 1165*906*719mm 32.9 0 45.8
220 YC6M350 Φ880*686mm 1345*1005*600*485mm 32.4 82.5 37.6
225 YC6MJ500L φ950*674mm 1340*1056*570*404mm 35.3 95.5 68.8
230 YC6MJ600-D30 Φ960*786mm 1545*1256*570*405mm 53.2 125.5 89.9
235 YC6MK220 Φ800*720mm 1308*1040*436436mm 31.8 72 53.6
236 YC6MK315N-D30 Φ896*676mm 1395*1156*570*404mm 35.3 125.5 79.5
238 YC6MK330N-D30 Φ890*676mm 1340*1056*569*404mm 36.8 0 83.6
240 YC6MK350L Φ896*676mm 1340*1056*569*404mm 34 94 49.6
241 YC6MK350L Φ896*676mm 1340*1056*569*404mm 35.3 96 68.8
244 YC6MK390L Φ880*686mm 1345*1006*590*405mm 34.7 0 65.2
246 YC6MK420-D30 Φ900*675mm 1337*1090*576*541mm 36.6 125 78.4
248 YC6MK420L Φ896*680mm 1344*1056*569519mm 35.3 96.5 68.8
255 YC6T450N-D30 Φ1000*786mm 1545*1356*650*405mm 62.2 152.3
256 YC6T660L Φ1000*784mm 1548*1256*650540mm 53.2 125 91.3
262 YC6T700L Φ1000*786mm 1550*1356*650*540mm 57.7 133.5 99.5
264 YC6T780-D31 φ1000*786mm 1545*1356*585*405mm 59.9 137.5 123.9
266 YC6TC1000-D31 Φ1172*806mm 1705*1626*715*470mm 68.5 224.5 175.5
269 YC6TC840-D31 Φ1172*806mm 1615*1476*600mm 60.7 170.5 145.9
270 YC6TC900-D31 Φ1172*806mm 1615*1476*695*450mm 65.6 178 158.2
271 YC6TD1000-D30 Φ1286*851mm 1705*1636*665*607mm 68.5 210 171.2
276 YC6TD1100-D30 φ1280*890mm 1734*1869*730*535mm 92.5 280 237.2
277 YC6TD600N-D30-D Φ750*1070mm 2105*1920*1025mm 159.8 0 244
279 YC6TD780L Φ1172*800mm 1614*1486*645*587mm 58.1 160.5 117.1
282 YC6TD840-D31(TD86S) Φ1286*851mm 1705*1626*665*470mm 65.4 140.9
284 YC6TD840L Φ1172*795mm 1614*1486*645*587mm 60.7 163.5 144.5
290 YC6TD900L Φ1172*795mm 1614*1486*645*587mm 60.3 167 181.9
293 YC6TD900L-D31 φ1172*800mm 1620*1556*645*450mm 68.1 172 192.8
295 YC6TF1520-D31 Φ1462*1085mm 2010*2020*545mm 100.3 333 252.1
296 YC6TF1660-D31 Φ1462*1085mm 2004*2019*731*516mm 105.1 340.5 309.7
299 YC6TH1070-D31 Φ1462*1085mm 2005*1920*655mm 74.3 320 137.7
301 YC6TH1220-D31 Φ1462*1085mm 2005*1920*655mm 78.1 302.5 191
305 YC6TH1320-D31 φ1462*1085mm 2004*1919*656*511mm 82.2 310.5 237.9
307 YCA05165-D40 Φ530*481mm 975*756*469*339mm 20 0 22.8
308 YCA05180-D40 φ590*526mm 1035*806*549*379mm 21.2 0 21.4
309 YCA05210-D40 φ590*526mm 1035*806*549*379mm 21.7 0 26.8
310 YCA0590-D40 Φ530*481mm 975*756*469*339mm 19.6 0 18.3
311 YCA08245-D40 φ820*621mm 1215*1056*510*489mm 33.7 30.6
312 YCA08350-D30 Φ820*621mm 1215*1056*459*379mm 34.5 78 43.1
314 YCA08350-D30-D Motor drive 1345*1106*711mm 40 90.1
315 YCA4.8TAA180-G20 φ530*461mm 975*806*514*379mm 21.2 57.5 24.3
316 YCB6.9T160-G21 Φ656*564mm 1032*766*360*220mm 15 34 34.5
317 YCD04T300 Φ510*401mm 792*666*335*225mm 10.4 15.2
318 YCD4.2T100-G21 φ510*389mm 792*666*346*235mm 10.4 15.2
319 YCD4P22C-150 φ550*454mm 882*666*365*255mm 10.5 0 16.6
320 YCD4T12C-90 Φ510*454mm 882*616*365*255mm 9.6 15.1
321 YCDV270A3H-1200 Φ1460*1048mm 2005*1800*620mm 86.4 275.1
322 YCDV270A3H-1320 Φ1462*1050mm 1994*1919*661*491mm 82.2 237.9
323 YCMJ12520-D40 Φ960*786mm 1545*1256*570*405mm 57.8 120.5 68.6
324 YD6A220Z Φ665*539mm 1052*853*442*302mm 16.8 0 42.5
325 YD6A245L φ710*581mm 1140*856*499*340mm 28 61 43
326 YD6J170Z Φ530*539mm 1052*816*442*302mm 17.6 0 40.2
327 YD6J210L Φ530*539mm 1052*816*442*302mm 16.3 56 40.2
328 YD6K600L φ956*676mm 1335*1056*569*404mm 36.8 0 85.6
329 YD6MJ695L Φ970*716mm 1445*1156*550mm 32.8 0 48
331 YD6W360Z φ700*676mm 1340*1056*569*404mm 35.3 0 68.8
332 YD6WL360L φ896*676mm 1340*1056*569*404mm 34 0 49.6
333 YD6WL480L- Φ896*676mm 1335*1056*569*510mm 35.3 98 68.8
7 GK---YC4108-000020100 Heat exchanger Heat exchanger Heat exchanger 0 Heat exchanger
8 HBJ---1200KW-YC12VTD1680- Heat exchanger 1850*1790*920mm 220 0 64
9 HBJ---1600KW-YC12VTD2000- Heat exchanger 1860*1830*757mm Heat exchanger 789 Heat exchanger
10 HBJ---2205KW-YC16VC3000-D Heat exchanger 1860*1830*757mm 180 789 Heat exchanger
11 HBJ---500KW-YC6C935N-D30- Heat exchanger 1670*1500*602mm Heat exchanger 0 Heat exchanger
12 HBJ---YC12VTD1350-2110100 Heat exchanger 1860*1830*757mm Heat exchanger Heat exchanger
13 HBJ---YC12VTD2000-D30(TDV 502*480mm 1860*1830*757mm 163 785 22.5
14 HBJ---YC16VC3300-D31(CK78 415*3992mm 1860*1830*776mm 171 22.5
15 HBJ---YC16VC3300-D31(CK78 Heat exchanger 2130*1830*757mm Heat exchanger Heat exchanger
16 HBJ---YC6B135Z-D20-211011 Heat exchanger 1100*850*480mm Heat exchanger Heat exchanger
17 HGPBJ---1000KW-YC6TH1320- No air duct 2215*1800*675mm 132 0 4
18 HGPBJ---259KW-YCA08350-D3 Heat exchanger 1328*990*400mm Heat exchanger 0 Heat exchanger
19 HGPBJ---280KW-YC6MK385L-B Heat exchanger 2600*2100*800mm 7 0 4
20 HGPBJ---281KW-YC6MK385L-B Heat exchanger 1500*1200*500mm Heat exchanger 316 Heat exchanger
21 HGPBJ---352KW-YC6MJ500L-1 Heat exchanger 1640*1200*500mm Heat exchanger 0 Heat exchanger
22 HGPBJ---441KW-YC6MJ600L-1 Heat exchanger 1600*1200*500mm Heat exchanger 0 Heat exchanger
23 HGPBJ---572KW-YC6TD705-B3 Heat exchanger 1680*1500*601mm Heat exchanger Heat exchanger
24 HGPBJ---YC6MK420L-D30-100 Heat exchanger 1500*1200*500mm Heat exchanger Heat exchanger
25 HGPBJ---YC6TC840-D31-1000 Heat exchanger 1600*1200*555mm Heat exchanger Heat exchanger
26 HSKBJ---400KW-YC6K600L-D3 Heat exchanger 1652*1500*714mm 100 0 4
32 WS---500KW-YC6C935N-D30-1 Horizontal water tank 1500*4505*2065mm Horizontal water tank 0 Horizontal water tank
33 WS---YC16VC3300-D31(CK782 Horizontal water tank 1588*5517*2058mm Horizontal water tank 1910 Horizontal water tank
